65 83 ... Removing and installing/replacing front trim for Car Infotainment Computer (Version 2 - From 3/2007)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Risk of damage! A hard disk is installed in the Car Information Computer (CIC). Carry out mechanical work on the CIC and adjacent components with care. Avoid subjecting the CIC to shaking/shocks.
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD protection). See 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE)
.
Necessary preliminary tasks:
- Remove middle instrument panel trim. See 51 45 310 REMOVING AND INSTALLING (REPLACING) CENTRE INSTRUMENT PANEL TRIM (FROM 03/2007) .

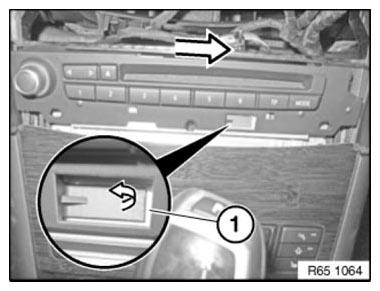

Carefully raise catch (1) with a suitable tool in direction of arrow. Feed out front trim for Car Information Computer to right and remove.

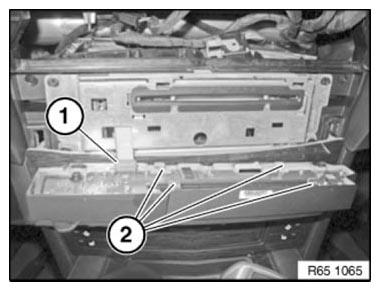

Disconnect plug connection (1). Remove front trim of Car Information Computer. Installation: Make sure guides (2) are correctly seated in designated openings. Replace front trim if guides are damaged.
