65 77... Overview of sensors for airbag system (from 09/2005)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.

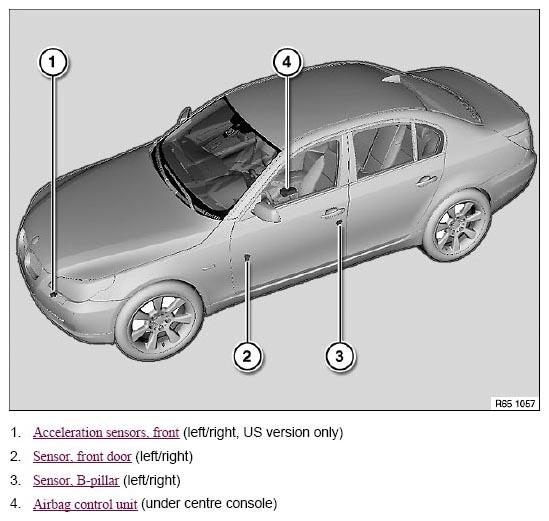

Fig 1: Identifying Airbag System Sensors Location (From 09/2005)
G05479102Courtesy of BMW OF NORTH AMERICA, INC.
