65 77 ... Overhaul solution for OC3 mat

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove SWITCH COMBINATION .

WARNING: To avoid damaging the OC3 mat, it is essential to carry out the following operations with extra care. Do not kink OC3 mat. Handle OC3 mat with extreme care.

NOTE: The following work steps of the overhaul solution for the OC3 mat relate to the entrance side from the front passenger seat.

Unclip cover (1) on front seat.

Fig 1: Identifying Front Seat Cover

Sport seat version: Release screws (1). If necessary, detach plug connections (2). Remove thigh support (3).

Fig 2: Identifying Plug Connections, Thigh Support And Screws

Sport seat version:

NOTE: Operation shown on driver's seat by way of example.

Unhook seat cover (1) in marked area on exit side. Lever out clip (2).

Installation: If necessary, replace defective clips (2).

Fig 3: Identifying Seat Cover And Clips

Detach seat cover (1) in marked area at all fastening points.

Fig 4: Identifying Seat Cover On At All Retaining Points

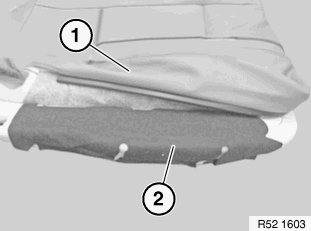

Important! Padding must not be damaged. Fold back seat cover (1) at side. Carefully detach OC3 mat (2) from side section of padding. If necessary, cut off OC3 mat (2) with a heavy-duty scalpel without damaging the padding.

Fig 5: Fold Back Seat Cover At Side

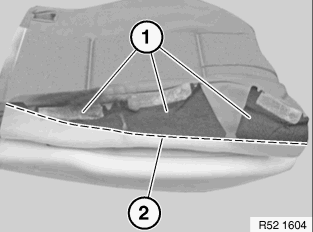

Important! Do not damage strip conductors of OC3 mat. Carefully cut off protruding material (1) of OC3 mat above contour (2).

Fig 6: Cut Off Protruding Material Of Mat

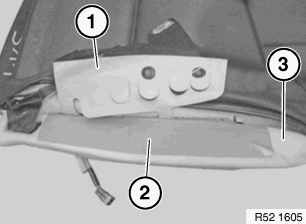

Fold back OC3 mat (1). Stick double-sided adhesive tape (2) to padding (3). Pull protective film off double-side adhesive tape (2).

Fig 7: Stick Double Sided Tape To Padding

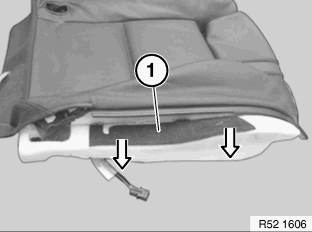

Pulling gently, stick OC3 mat (1) to side section.

Fig 8: Stick OC3 Mat To Side Section

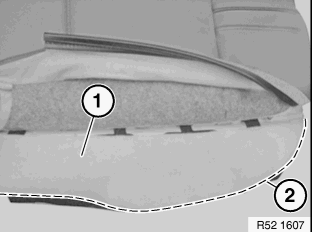

Stick fleece (1) in area of OC3 mat to side section. Note: Stick fleece (1) to side section edge (2) so that it is flush. Assemble front seat.

Fig 9: Stick Fleece In Area Of OC3 Mat To Side Section

Enabling seat occupancy detection (OC3 mat): Connect BMW diagnosis system. Release seat occupancy detector. Clear fault memory if necessary.
