61 31 299 Removing and installing/replacing clutch switch module

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TRIM PANEL FOR PEDAL ASSEMBLY .

NOTE: Clutch master cylinder (2) is removed for purposes of clarity.

Lever out clutch switch module (1) from clutch master cylinder (2) with screwdriver.

Unlock plug (4) and disconnect from housing (3).

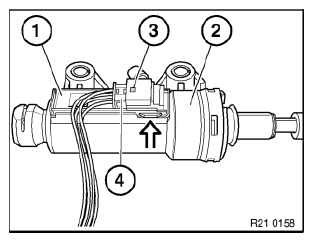

Fig 1: Removing Clutch Switch Module

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clutch switch module is secured against incorrect installation.

Clutch switch module must snap audibly into place.

Fig 2: Identifying Clutch Switch Module

Courtesy of BMW OF NORTH AMERICA, INC.
