13 62 560 Removing and installing/replacing air-mass flow sensor (N52 / N52K / N53)

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read out fault memory of DME control unit
Switch off ignition

Release screws.

Unlock plug (1) and remove.

Pull air-mass flow sensor (2) out of upper section of intake filter housing.

Installation:

Screws - tightening torque 13 62 8AZ . See FUEL SYSTEM - TIGHTENING TORQUES .

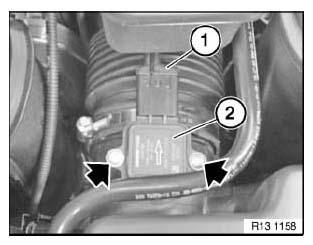

Fig 1: Identifying Plug And Air-Mass Flow Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check stored fault message.
Now clear the fault memory.
