Section 1841 (Electrical Component Locator): Splices
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW M5, 2008 BMW 550i, 2008 BMW 535xi, 2008 BMW 535i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.
SPLICES LOCATION
| Component | Location |
|---|---|

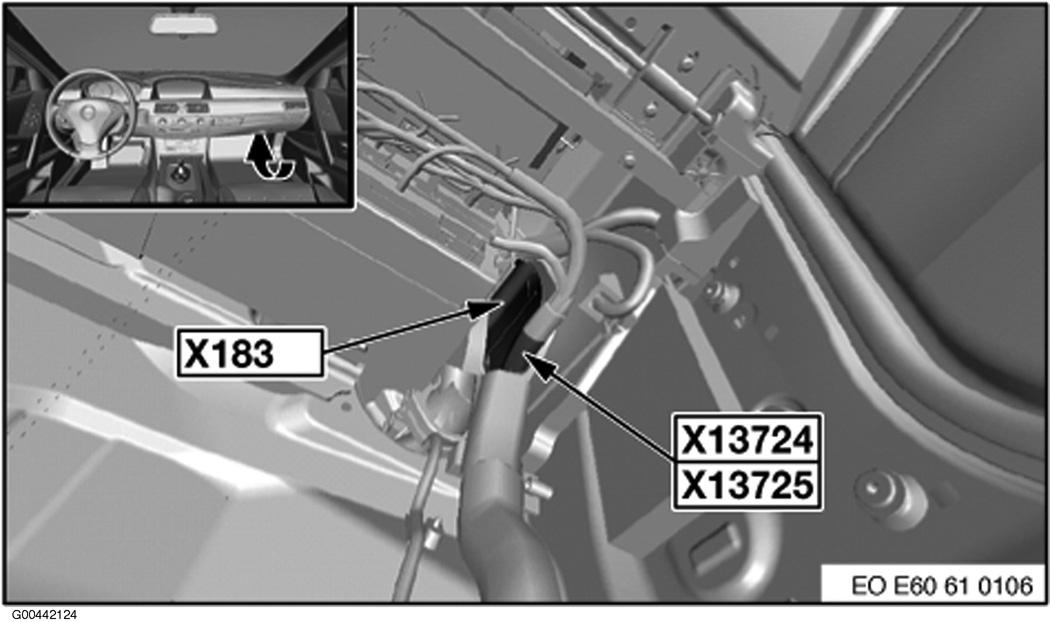

| X183 | Behind right side of dash. See Figure. |

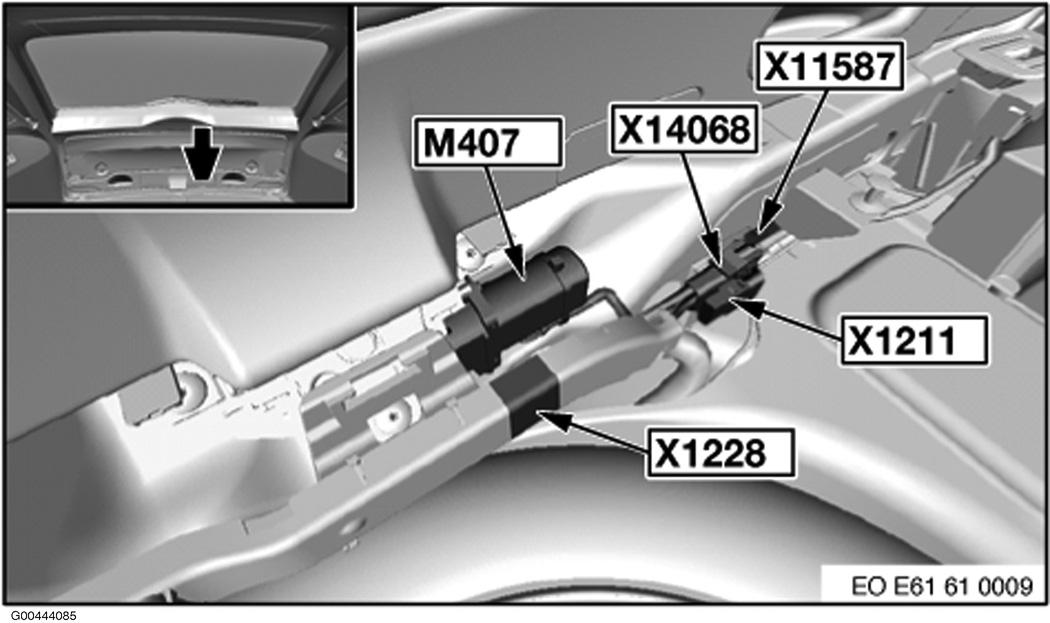

| X1228 | Center of rear compartment. See Figure. |
| X10554 | Front of vehicle. |
| X10555 | Front of vehicle. |

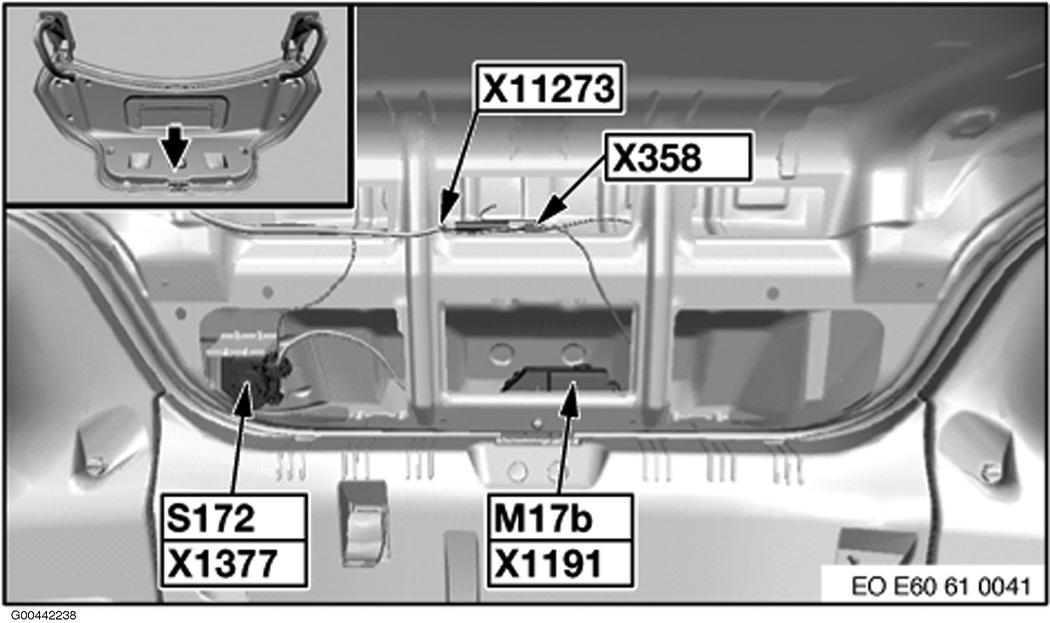

| X11273 (Sedan) | Center of rear compartment door. See Figure. |

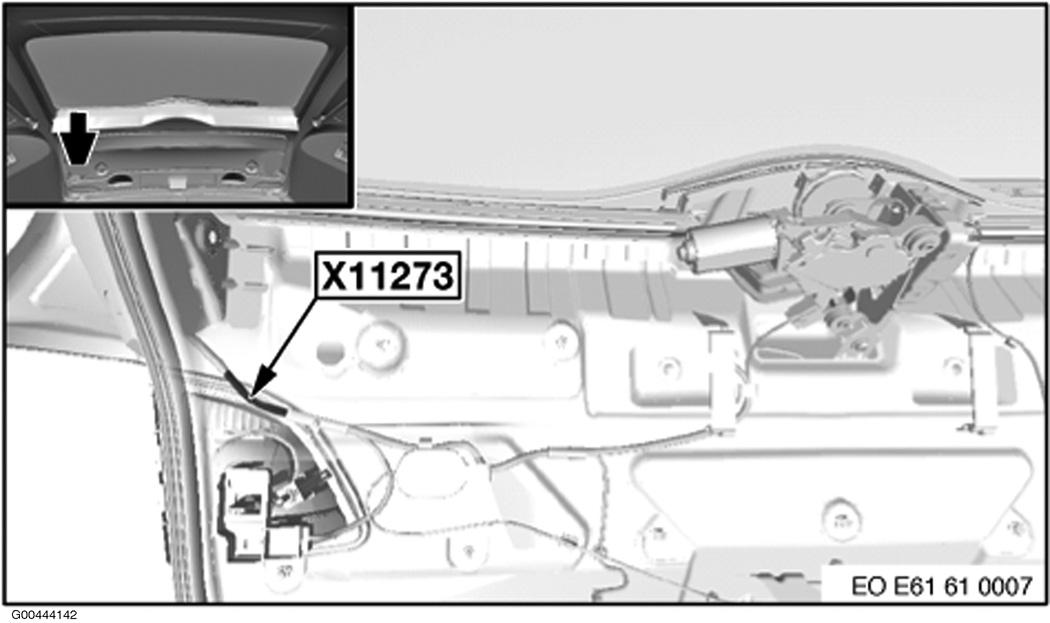

| X11273 (Wagon) | Right side of rear compartment door. See Figure. |
| X13724 (Except M5) | Right front footwell. See Figure. |
| X13724 (M5) | Under right side of dash. See Figure. |
| X13725 (Except M5) | Right front footwell. See Figure. |
| X13725 (M5) | Under right side of dash. See Figure. |

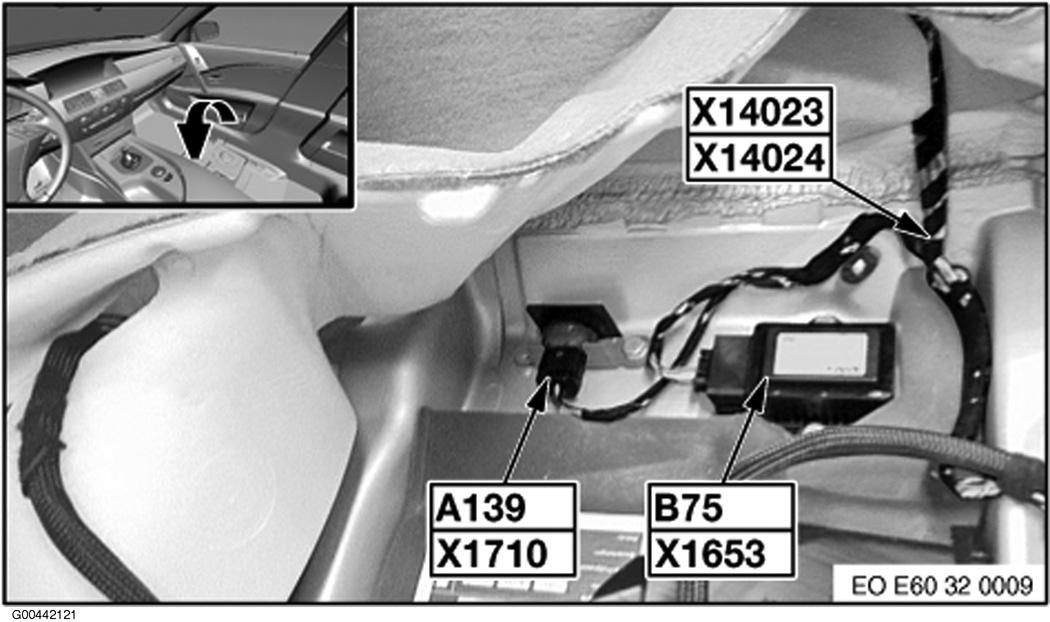

| X14023 | Under front passenger's seat. See Figure. |
| X14024 | Under front passenger's seat. See Figure. |

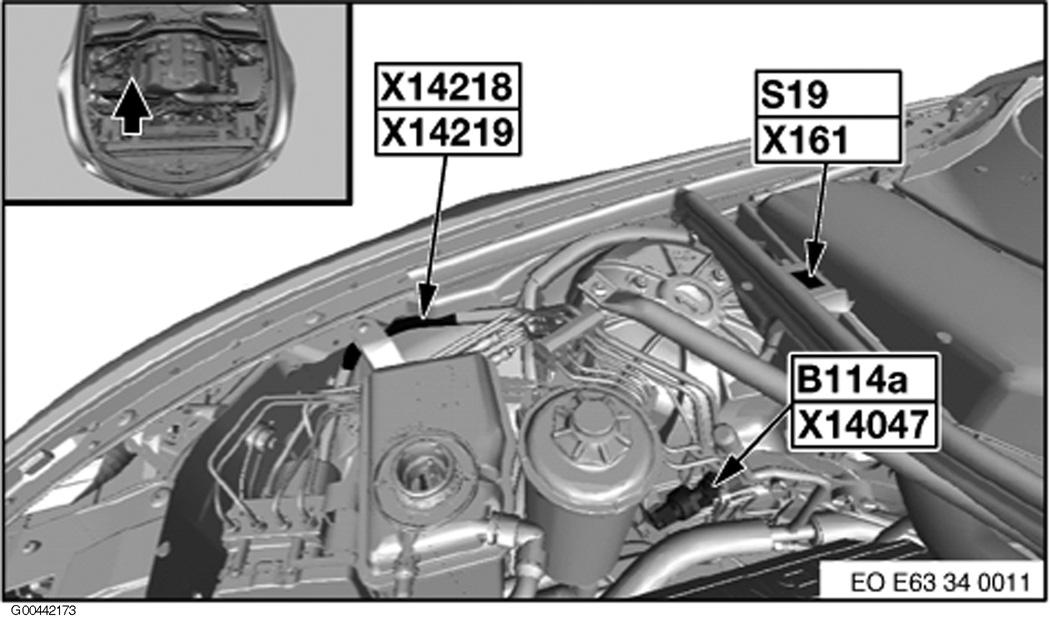

| X14218 | Right side of engine compartment. See Figure. |
| X14219 | Right side of engine compartment. See Figure. |

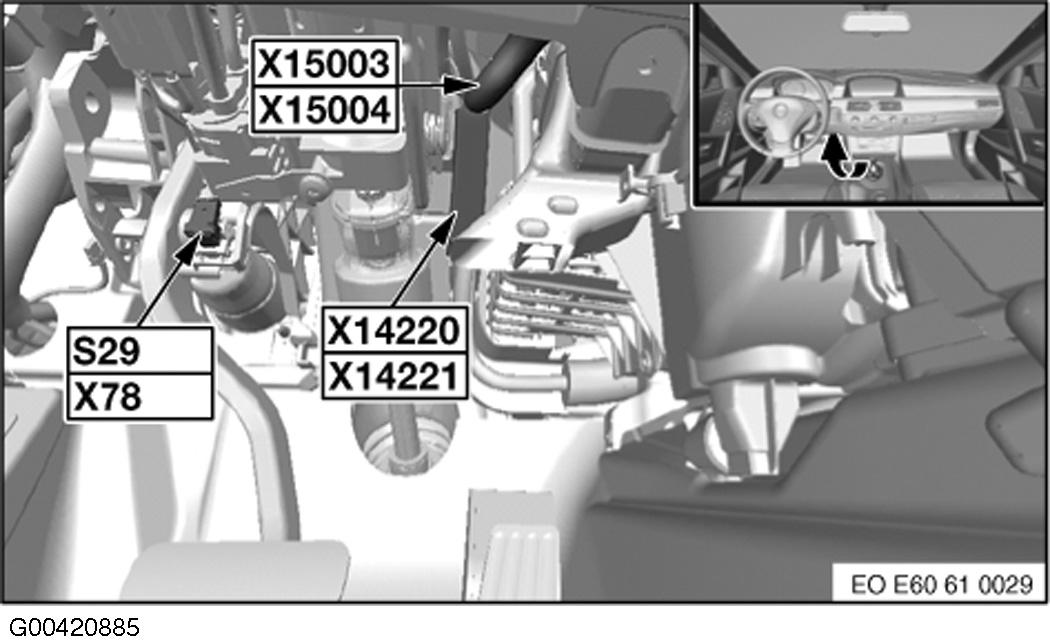

| X14220 | Under left side of dash. See Figure. |
| X14221 | Under left side of dash. See Figure. |
| X15003 | Under left side of dash. See Figure. |
| X15004 | Under left side of dash. See Figure. |

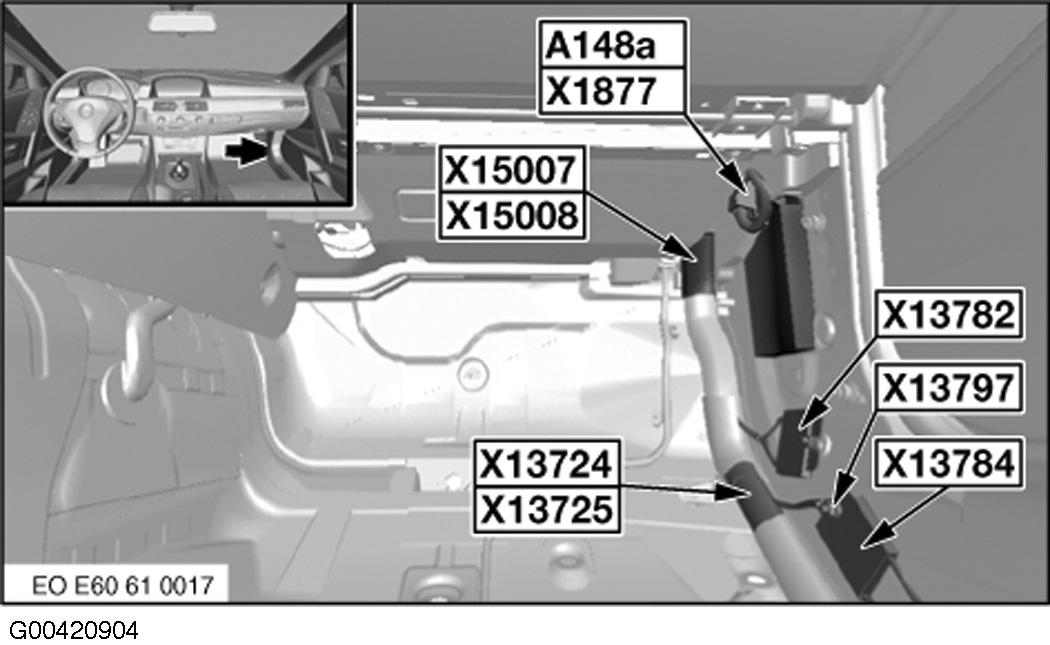

| X15007 | Right front footwell. See Figure. |
| X15008 | Right front footwell. See Figure. |

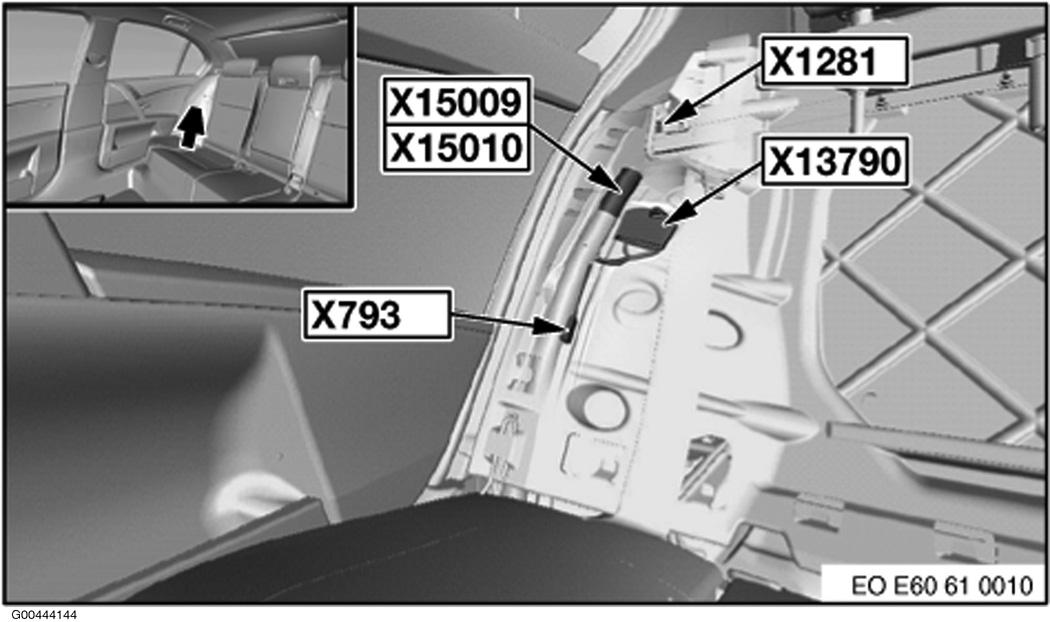

| X15009 | Behind right side of right rear seat. See Figure. |
| X15010 | Behind right side of right rear seat. See Figure. |
| X15011 | Right side of headliner. See Figure. |
| X15012 | Right side of headliner. See Figure. |
