Removing Radiator Cover

WARNING: This page is about a different car, the 2007 BMW 550i and 2006 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Illustrations show M54:

IMPORTANT:

Do not place front panel center section (2) on jump start terminals.

Do not kink Bowden cables for engine hood locking.

Release screws (1).

Remove front panel center section (2) in direction of arrow and place to one side.

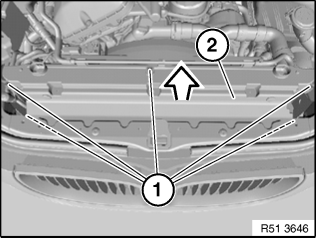

Fig 1: Identifying Front Panel Center Section

Courtesy of BMW OF NORTH AMERICA, INC.

Illustrations show M54:

Release screws (1).

Remove radiator cover (2) in direction of arrow.

Fig 2: Identifying Radiator Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
