66 31 006 Removing And Installing/Replacing Acc Sensor (Build Date From 03/2005)

WARNING: This page is about a different car, the 2008 BMW Alpina and 2007 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Necessary preliminary tasks:

Remove trim grille for bumper trim sideways. See 51 11 185 REMOVING AND INSTALLING / REPLACING SIDE TRIM GRILLE FOR BUMPER TRIM (FROM 03/2005) .

IMPORTANT: Secure ACC sensor (2) against falling out.
Cover bumper in working area (1) with adhesive tape.

Using special tool 00 9 317 , unclip ACC sensor (2) from holders on both sides.

Installation:

ACC sensor must be felt and heard to snap into place.

Fig 1: Identifying Special Tool 00 9 317 And ACC Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Secure ACC sensor (1) against falling out.

Disconnect plug connection (2) and remove sensor (1).

Fig 2: Identifying Plug Connection And ACC Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Adjusting ACC sensor . See 66 31 001 ADJUSTING ACC SENSOR .
Carry out programming/coding . See VEHICLE PROGRAMMING AND CODING .

Replacement:

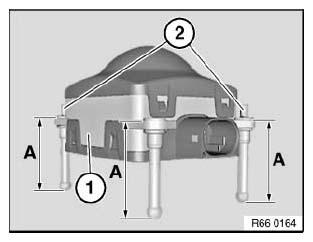

Carry out rough adjustment of ACC sensor (1) at adjusting screws (2).

Measurement A [mm]: 42.5 to 43.5

Fig 3: Identifying ACC Sensor Measurement
Courtesy of BMW OF NORTH AMERICA, INC.
