32 31 003 Removing And Installing/Replacing Upper Section Of Steering Column Trim

WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 323

Move steering column in "bottom" and "extended" position.

IMPORTANT: Risk of damage!
Unclip steering column trim (1) at side with special tool 00 9 323.

Fig 1: Identifying Column Trim And Special Tool (00 9 323)

Courtesy of BMW OF NORTH AMERICA, INC.

Tilt steering column trim (1) towards front.

Unclip steering column gap cover (2) from steering column trim (1).

Installation:

Tilt steering column trim towards rear, align by way of locks to lower section (of steering column trim) and press down.

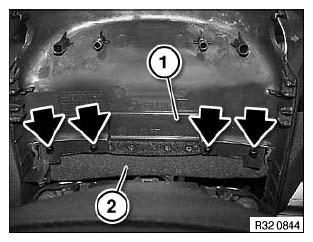

Fig 2: Identifying Steering Column Gap Cover And Steering Column Trim

Courtesy of BMW OF NORTH AMERICA, INC.
