33 00... Rear Axle: Wheel/Chassis Alignment Check Must Be Carried Out After The Following Work
WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
A wheel/chassis alignment check must be carried out after the following work:

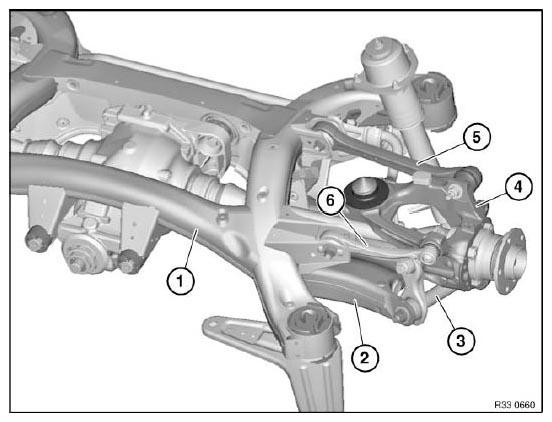

- Release of following screw/bolt connections:
- Swinging arm, front/rear, to rear axle carrier
- Swinging arm to integral link / wheel carrier
- Integral link to wheel carrier
- Guide arm to rear axle carrier
- Control arm to rear axle carrier
- Replacement of following parts:
- Rear axle carrier
- Swinging arm
- Integral link
- Wheel carrier / ball joint
- Control arm
- Guide arm
