32 00... General Chassis And Suspension Definitions

WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

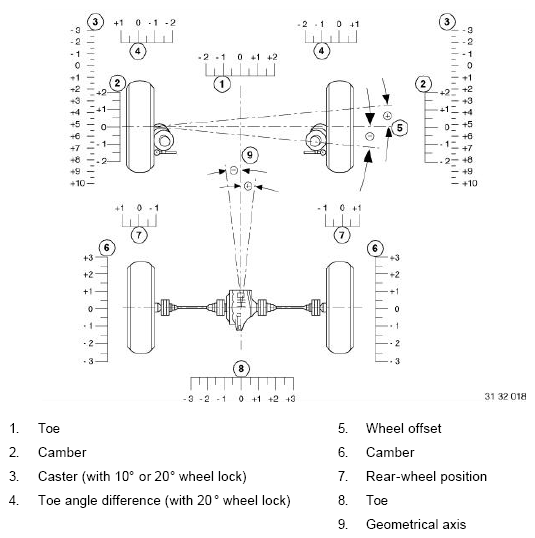

Fig 1: Identifying General Chassis And Suspension Definitions
G04794434Courtesy of BMW OF NORTH AMERICA, INC.
