31 50 ... Overview of front differential / output shafts

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, 2007 BMW X3, and 2006 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

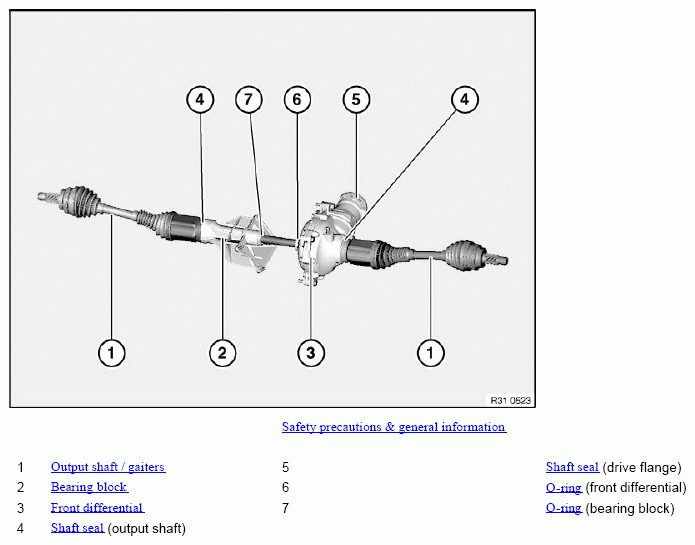

Fig 1: Front Differential / Output Shafts Components
G04787637Courtesy of BMW OF NORTH AMERICA, INC.
