31 00 ... Front axle + steering: wheel/chassis alignment check must be carried out after the following work
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, 2007 BMW X3, and 2006 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

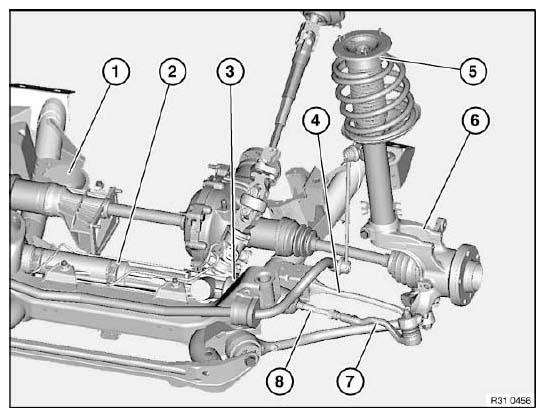

A wheel/chassis alignment check, see 32 00 150 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH LOAD UP TO DESIGN POSITION , must be carried out after the following work:
- Release of following screw/bolt connections:
- Steering gear to front axle carrier
- Control arm to front axle carrier
- Support bearing to body (if centering pin is missing)
- Tie rod end to tie rod
- Replacement of following parts:
- Front axle carrier
- Steering gear
- Gaiter (if the tie rod end has to be screwed off)
- Control arm / rubber mount
- Support bearing (if centering pin is missing)
- Swivel bearing
- Tie rod end
- Tie rod
