31 .. .. Layout of spring strut shock absorber

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, 2007 BMW X3, and 2006 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

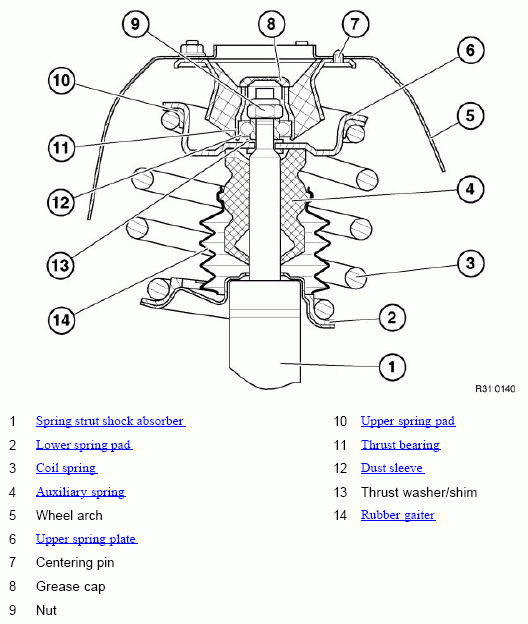

Fig 1: Spring Strut Shock Absorber Components
G04787552Courtesy of BMW OF NORTH AMERICA, INC.
