7.4 Printing out the data
WARNING: This page is about a different car, the 2007 BMW 530xi, 2007 BMW 525xi, 2006 BMW 530xi, and 2006 BMW 525xi. However, it is still accessible from the selected car via links, so may be relevant.

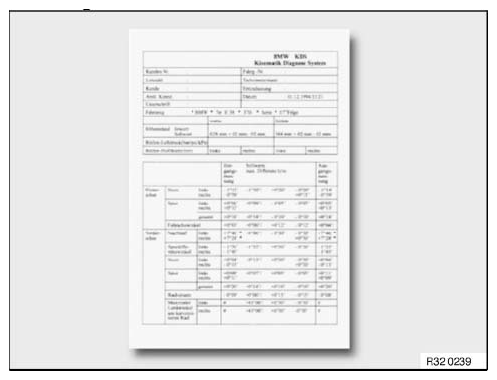

The report printout from the integrated DIN A4 printer is subdivided into three sections:
- Header lines with customer and vehicle identification data --> the customer data entered before beginning the measurement as well as vehicle data are printed out here.
- Center section with vehicle data --> this includes the make, type, model and vehicle model year defined when the setpoint data record was selected. The values previously measured for height level, tire pressure and tread depth are also printed in this section.
- The end section with all vehicle alignment values comprises the 3 columns initial measurement, setpoint values and output measurement. The measured values are recorded separately in these three columns.
