3.7 BMW Quick-acting clamp

WARNING: This page is about a different car, the 2007 BMW 530xi, 2007 BMW 525xi, 2006 BMW 530xi, and 2006 BMW 525xi. However, it is still accessible from the selected car via links, so may be relevant.

BMW quick-acting clamp for holding the measuring sensors precisely in position and measuring without rim run-out compensation.
NOTE: Any existing quick-acting clamps, e.g. from older F1600s or ML-3000s, must not be used on the BMW KDS.

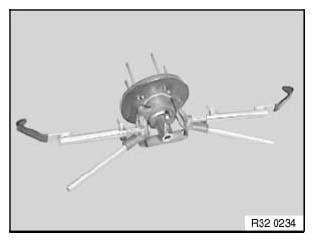

Fig 1: Identifying BMW Quick-Acting Clamp
Courtesy of BMW OF NORTH AMERICA, INC.
