3.4 Equipment cabinet

WARNING: This page is about a different car, the 2007 BMW 530xi, 2007 BMW 525xi, 2006 BMW 530xi, and 2006 BMW 525xi. However, it is still accessible from the selected car via links, so may be relevant.

The PC with graphic monitor and removable operating panel, supports for the measuring sensors, the remote control and the A4 printer are integrated into the workstation. The charging station is located in the cabinet and can also be connected to the measuring sensors and the remote control using the plug-in cables (operating while simultaneously charging the batteries).

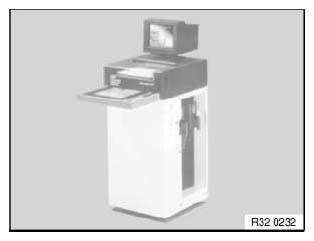

Fig 1: Identifying Equipment Cabinet
Courtesy of BMW OF NORTH AMERICA, INC.
