65 77 ... Overview of Sensors For Airbag System (ISIS)

WARNING: This page is about a different car, the 2008 BMW 750i, 2008 BMW 750Li, 2007 BMW 750i, and 2007 BMW 750Li. However, it is still accessible from the selected car via links, so may be relevant.

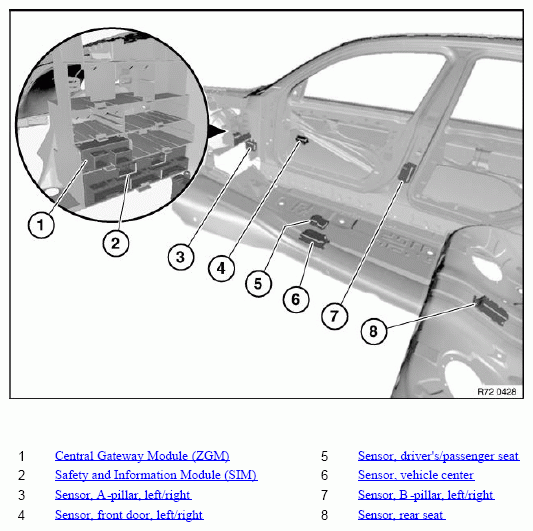

Fig 1: Identifying Sensors For Airbag System (ISIS) Components
G04769055Courtesy of BMW OF NORTH AMERICA, INC.
