61 13 Special Tools For Wiring Harness Repairs

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 750i, 2008 BMW 750Li, 2007 BMW 750i, 2007 BMW 750Li, and 2006 BMW 750i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

12 1 080
61 0 200
61 0 210
61 0 220
61 0 230
61 0 300
61 0 400
61 1 190
61 4 320
61 9 041
61 9 044

Repair range, vehicle electrical system:

Release and press-out tool:

Special tool 61 0 300
Special tool 61 0 400 (MINI N12/N14)

Handling:

Opening plug housings and removing contacts of different plug systems. See 61 13 OPENING PLUG HOUSINGS AND REMOVING CONTACTS OF DIFFERENT PLUG SYSTEMS .

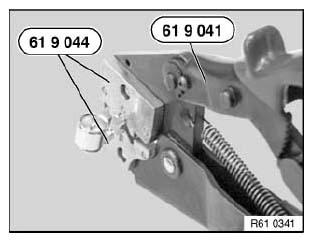

Fig 1: Identifying Special Tool Kit

Courtesy of BMW OF NORTH AMERICA, INC.

Cutting to length and stripping insulation from cables:

Handling:

Cutting to length and stripping insulation from cables . See 61 13 CUTTING TO LENGTH AND STRIPPING INSULATION FROM CABLES .

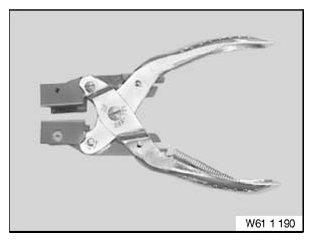

Fig 2: Identifying Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Crimping stop parts (small contacts):

Special tool 61 4 320
1. Tool without crimping head
2. Crimping head (stripping insulation and cutting fibre-optic cables to length) . See 61 13 ... CUTTING OFF, STRIPPING INSULATION AND CUTTING OPTICAL FIBRES TO LENGTH .
3. Crimping head (crimping fibre-optic cable contacts) . See 61 13 ... CRIMPING OPTICAL FIBRES .
4. Crimping head (crimping MQS contacts) . See 61 13 ... CRIMPING MICRO QUADLOCK SYSTEM CONTACTS (MQS) .
5. Crimping head (crimping MPQ contacts) . See 61 13 ... CRIMPING MICRO POWER QUADLOCK CONTACTS (MPQ) .
6. Replacement blade (face-cutting fibre-optic cables)
7. Replacement blade with tool (insulation stripping unit)
8. Universal crimping head

  Fig 3: Identifying Special Tool Kit
  Courtesy of BMW OF NORTH AMERICA, INC.
