7.4 Printing Out The Data

WARNING: This page is about a different car, the 2007 BMW 550i and 2006 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

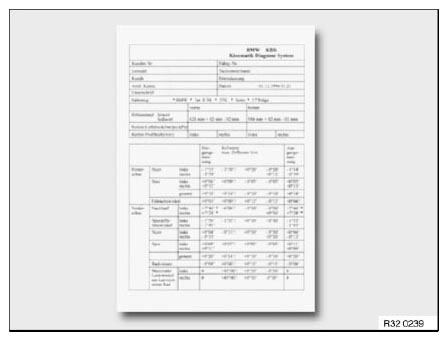

Fig 1: Identifying Printing Out Data

Courtesy of BMW OF NORTH AMERICA, INC.

The report printout from the integrated DIN A4 printer is subdivided into three sections:

Header lines with customer and vehicle identification data --> the customer data entered before beginning the measurement as well as vehicle data are printed out here.
Centre section with vehicle data --> this includes the make, type, model and vehicle model year defined when the setpoint data record was selected. The values previously measured for height level, tyre pressure and tread depth are also printed in this section.
The end section with all vehicle alignment values comprises the 3 columns initial measurement, setpoint values and output measurement. The measured values are recorded separately in these three columns.
