32 41... Replacing Suction Line For Power Steering With Dynamic Drive (N62, N62TU) (From Fluid Reservoir To Cutting Line)
WARNING: This page is about a different car, the 2007 BMW 550i and 2006 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Close off pipe connections with plugs.
Necessary preliminary tasks:
- Draw off and dispose of hydraulic fluid from fluid reservoir
- Remove REINFORCEMENT PLATE
Remove FLUID RESERVOIR FROM MOUNTING BRACKET/BODY .

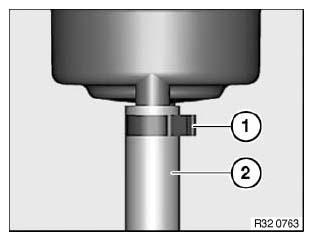

Unfasten hose clip (1).
Disconnect suction line (2) from fluid reservoir.
Installation:
Make sure hydraulic line is laid without tension and with sufficient spacing to adjoining components.
Expose suction line up to cutting line on engine.
Unscrew nut (1).
Unfasten hose clip (2).
Detach suction line (3) and remove.
Installation:
Markings (4) on both suction lines must match up.
Replace self-locking nut.
Tightening torque: 32 41 10AZ . See PUMP AND OIL SUPPLY for specs.
After installation:
- Fill and bleed HYDRAULIC SYSTEM
- Check pipe connections for leaks
