61 31 348 Replacing microswitch for unlocking rear lid

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove strip handle (on rear lid), refer to 51 13 402 REMOVING AND INSTALLING HANDLE STRIP (ON TRUNK LID) .

Remove clip (1) in direction of arrow.

Installation:

Make sure clip (1) is correctly seated.

Remove switch for unlocking rear lid (2) in direction of arrow from fixtures (3).

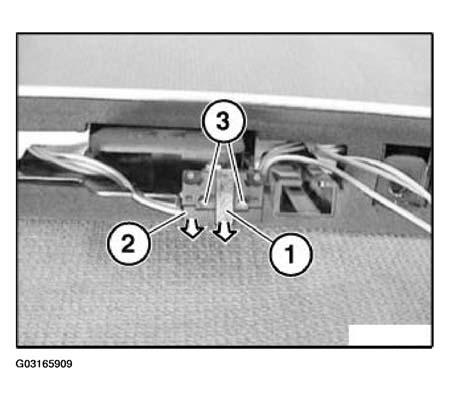

Fig 1: Removing Switch For Unlocking Rear Lid From Fixtures

Courtesy of BMW OF NORTH AMERICA, INC.

Cut wires on switch for unlocking rear lid (2) to length and strip insulation.

Crimp stop parts.
