61 31 313 Replacing a brake lining sensor

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove wheel. See 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL

Open plug housing (1).

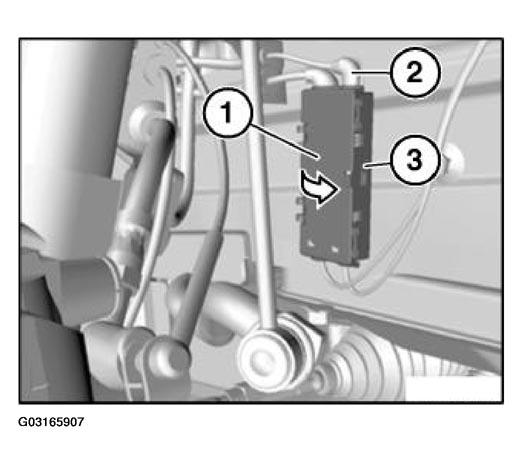

Fig 1: Opening Plug Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip lead of brake lining sensor (2) from plug housing (1).

Disconnect associated plug connection of lead from brake lining sensor (2).

Feed lead from brake lining sensor (2) out of fixtures.

Press clip (1) together and detach brake lining sensor (2) in direction of arrow from brake caliper (3).

Installation:

Make sure clip (1) and brake lining sensor (2) are correctly seated in brake caliper (3).

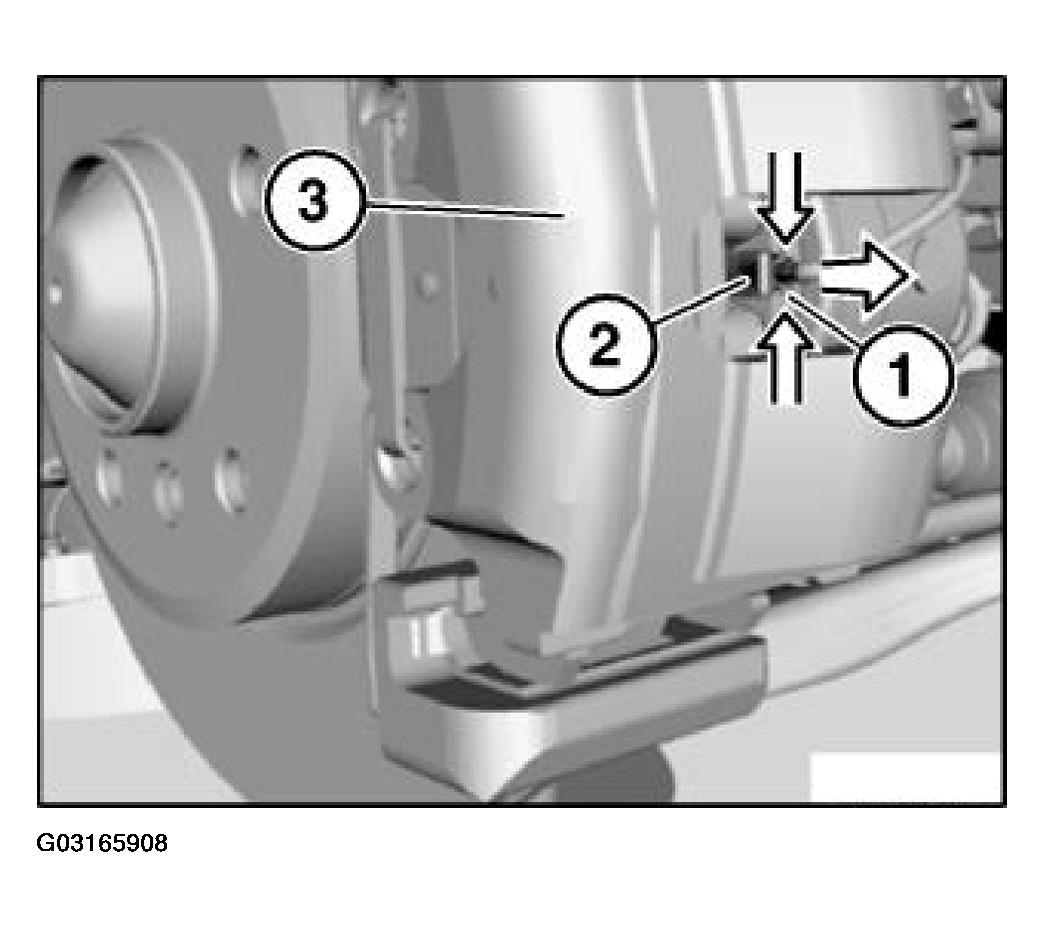

Fig 2: Ensuring Clip (1) And Brake Lining Sensor (2) Are Correctly Seated In Brake Caliper (3)

Courtesy of BMW OF NORTH AMERICA, INC.
