61 31 115 Replacing rocker switch for side-window operation

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Version With SMG Transmission Only:

Remove Trim For Storage Tray:

All:

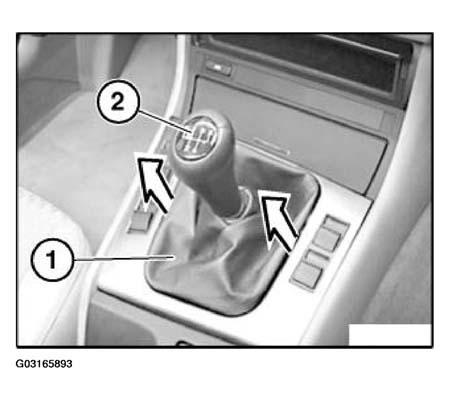

Unclip gaiter (1) sideways and force upwards over shift knob (2).

Fig 1: Uncliping Gaiter
G03165893Courtesy of BMW OF NORTH AMERICA, INC.

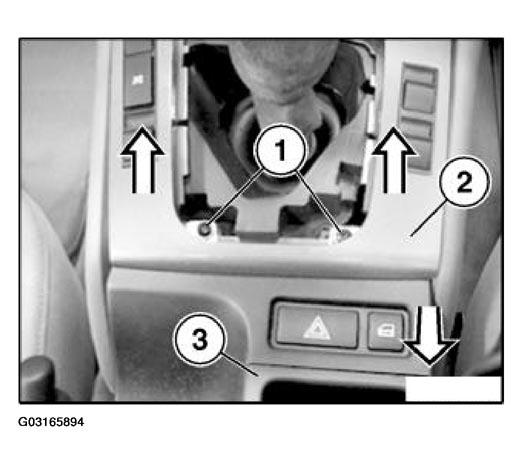

Loosen screws (1).

Raise base of storage tray (2).

Fig 2: Raising Base Of Storage Tray
G03165894Courtesy of BMW OF NORTH AMERICA, INC.

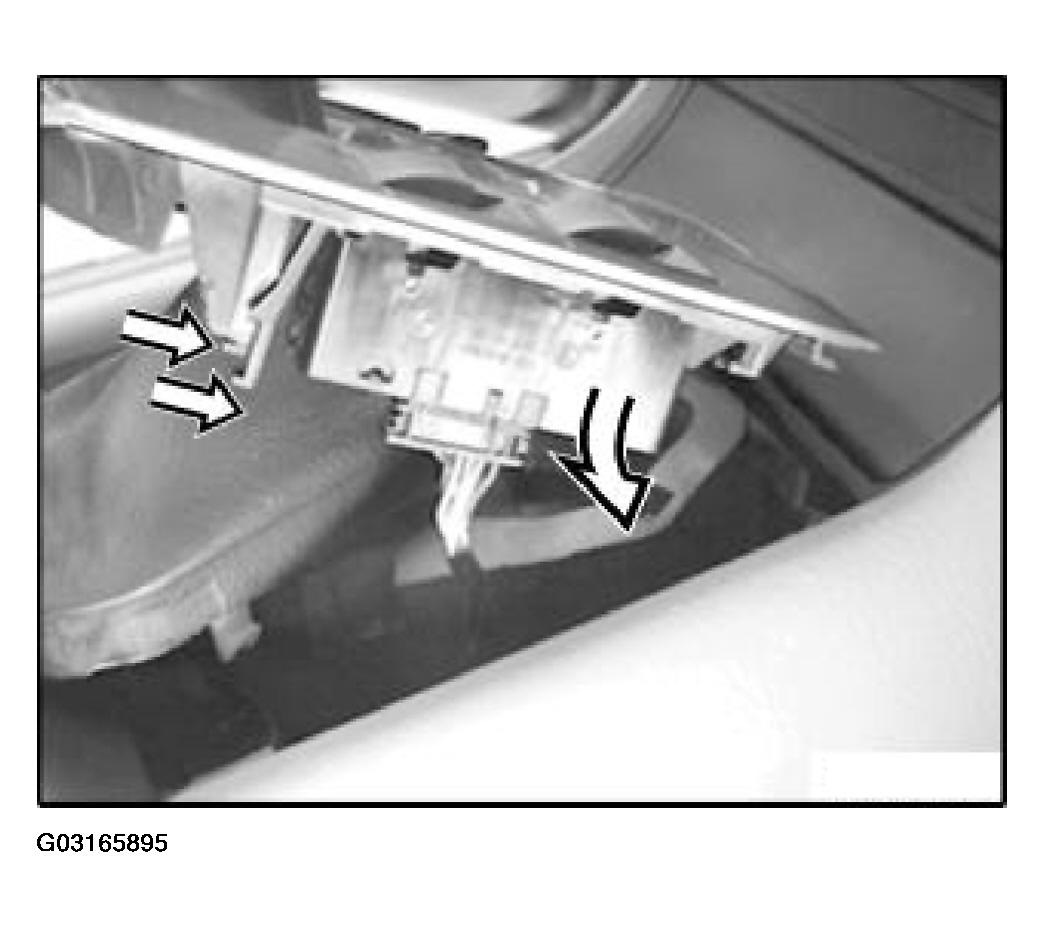

Unlock retaining clips and unclip rocker switch for window operation.

Fig 3: Uncliping Rocker Switch For Window Operation
G03165895Courtesy of BMW OF NORTH AMERICA, INC.

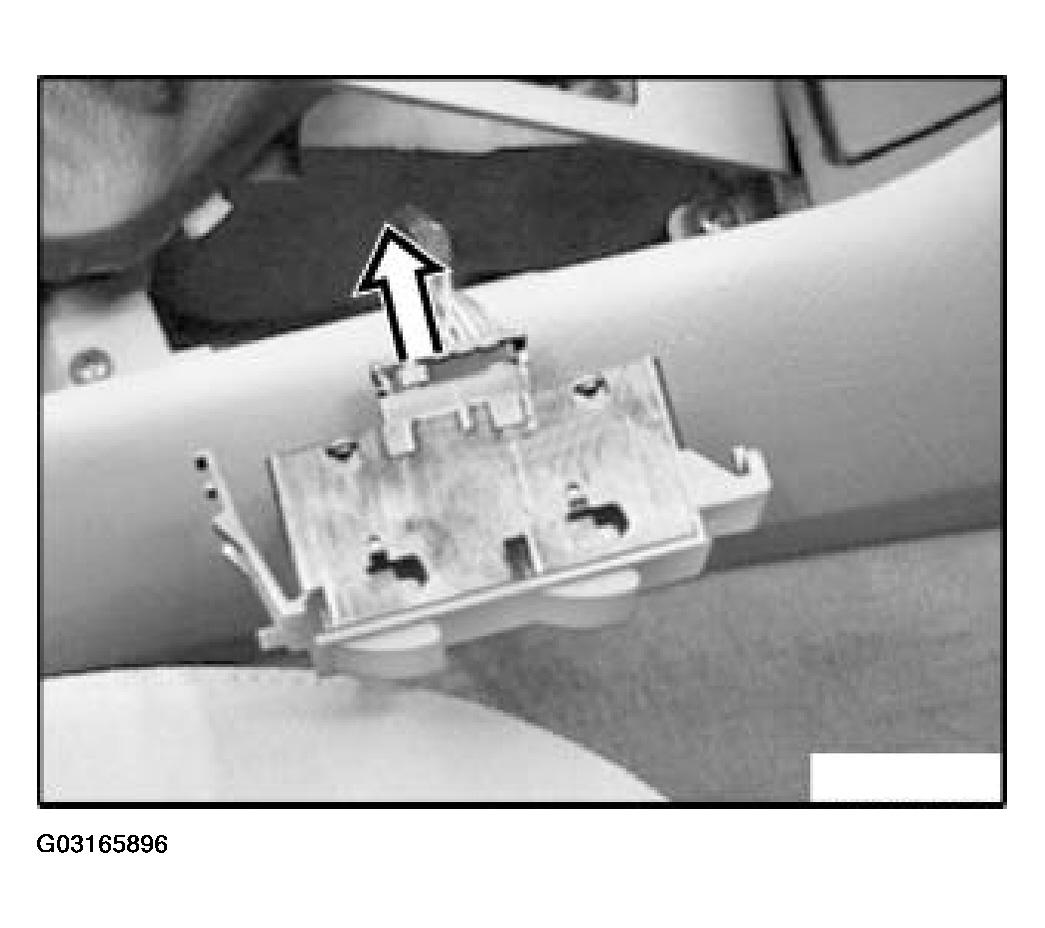

Disconnect plug.

Fig 4: Disconnecting Plug
G03165896Courtesy of BMW OF NORTH AMERICA, INC.
