61 31 040 Removing and installing/replacing switch for windshield wipers

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Press locks (1) and windshield wiper stalk (2) in direction of arrow out of fixture for steering column stalk (3).

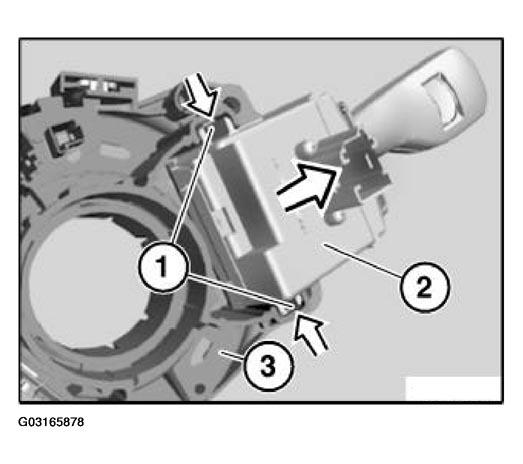

Fig 1: Pressing Locks And Windshield Wiper Stalk
G03165878Courtesy of BMW OF NORTH AMERICA, INC.
