61 31 033 Removing and installing light switch unit

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Unclip left wooden finisher,

Remove left glovebox, release screws (1).

Fig 1: Removing Left Glovebox

Courtesy of BMW OF NORTH AMERICA, INC.

Press switch unit up a little through glovebox aperture and then slide back.

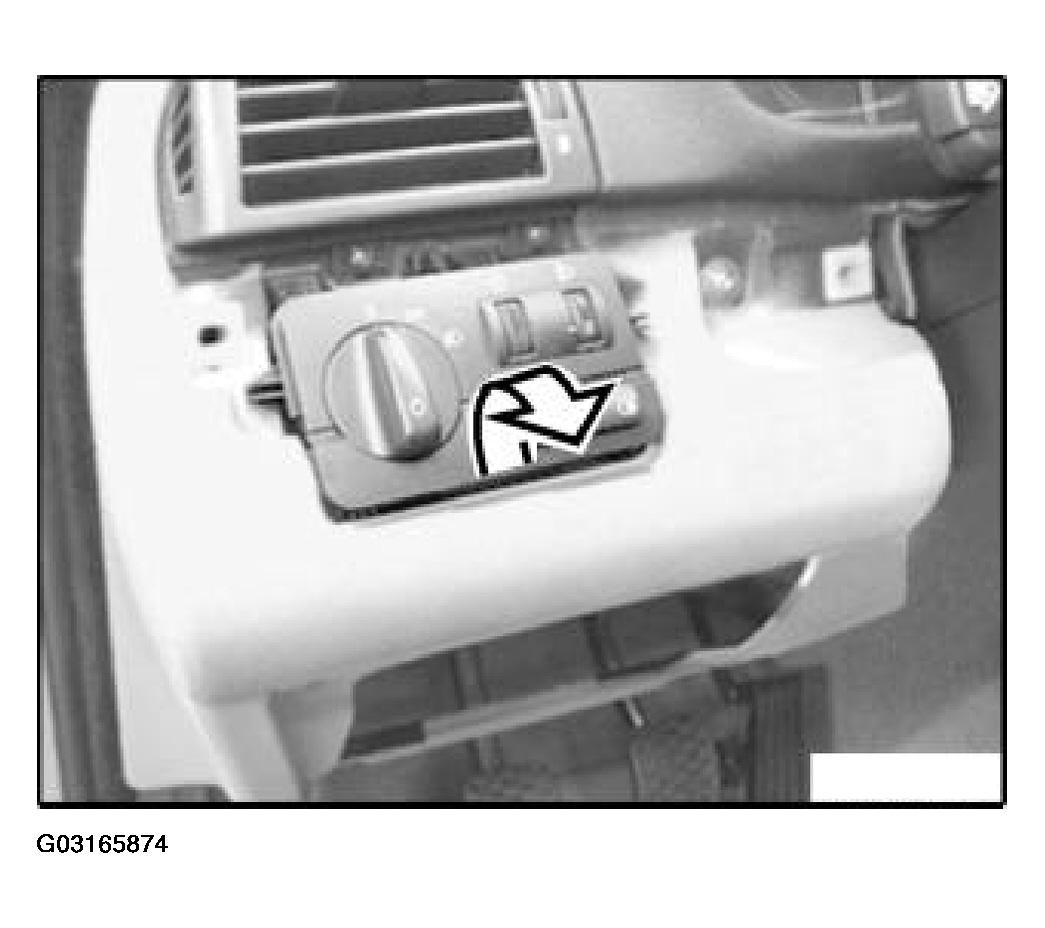

Fig 2: Pressing Switch Unit Up A Little Through Glovebox Aperture

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug and remove.

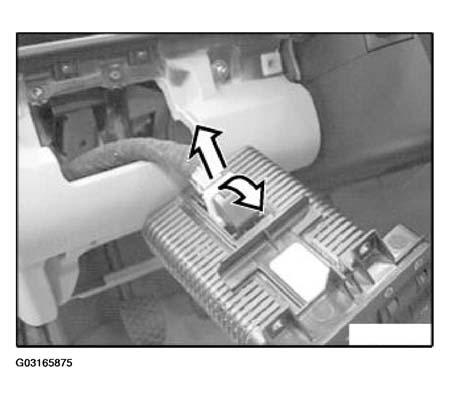

Fig 3: Removing Plug

Courtesy of BMW OF NORTH AMERICA, INC.
