61 31 005 Removing and installing/replacing fixture for steering column stalk
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Move wheels into straight-ahead position and do not alter this position during the repair work. With steering wheel removed, do not under any circumstances turn/twist fixture for steering column stalk!
Necessary Preliminary Tasks:
- Remove steering wheel, refer to:
- For 2001 models, see STEERING WHEEL .
- For 2002 models, see STEERING WHEEL .
- for 2003 models, see STEERING WHEEL .
- For 2004 models, see STEERING WHEEL .
- For 2005 Models, see STEERING WHEEL .
- Remove lower section of steering column trim, refer to STEERING COLUMN LOWER TRIM .
- Remove top section of steering column casing, refer to STEERING COLUMN UPPER TRIM .
Disconnect plug from ring antenna.
Disconnect plug from wiper switch.
Disconnect plug from turn indicator/dipping switch.

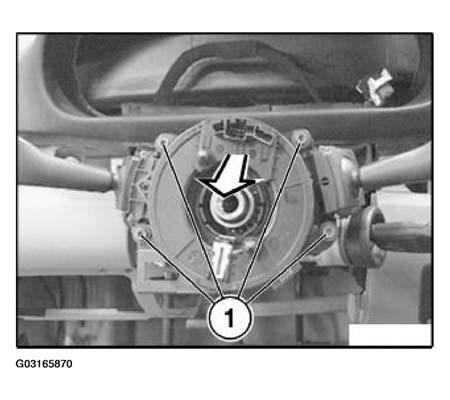

Release screws (1) and remove fixture for steering column stalk.
WARNING:

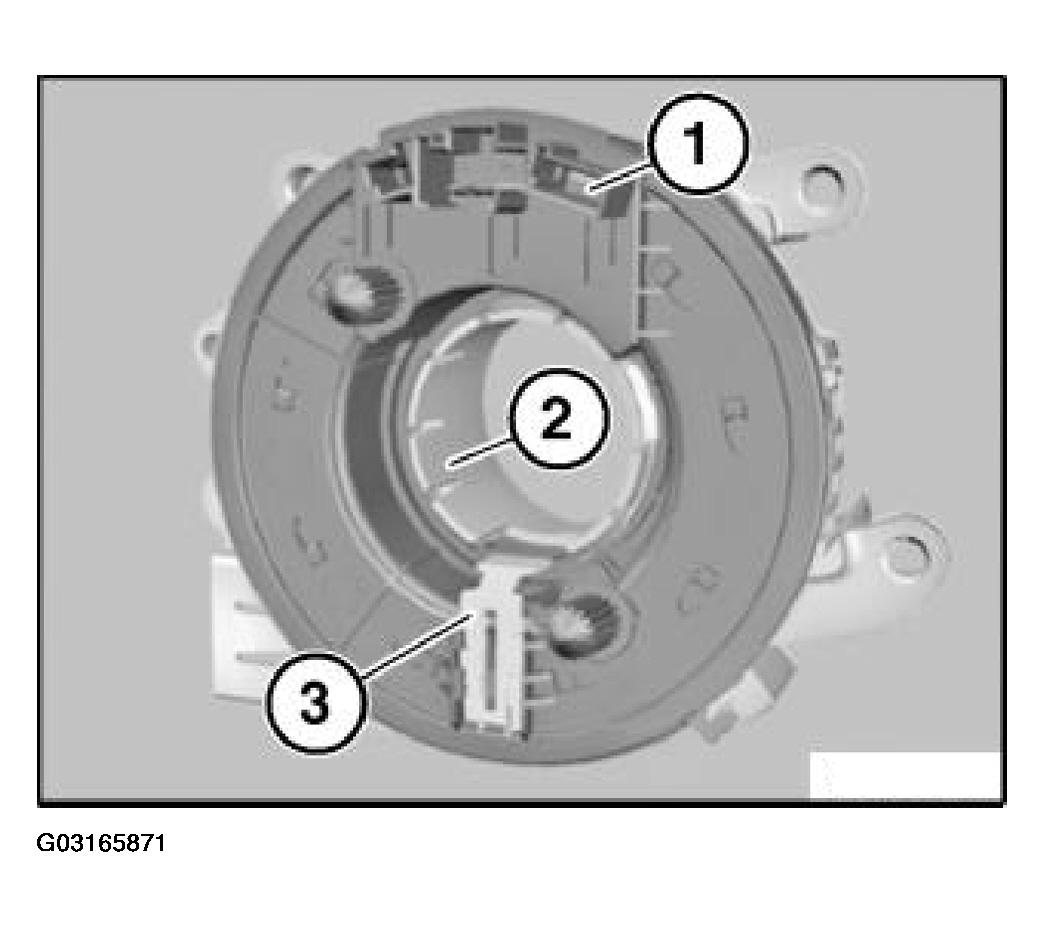

When removed, the cover (1) of the fixture for the steering column stalk (2) is secured against turning/twisting by the lock (3). Do not under any circumstances twist the cover (1) out of its centered position against the fixture for the steering column stalk (2).
