61 35 910 Removing and installing/replacing control unit of electronic immobilizer

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection), refer to 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary Preliminary Tasks:

Disconnect battery negative lead.
Remove trim panel for pedal assembly. See 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY

Unfasten plug connection (1) and disconnect.

NOTE: Secure control unit of electronic immobilizer (3) against falling out.

Release screws (2) and remove control unit of electronic immobilizer (3).

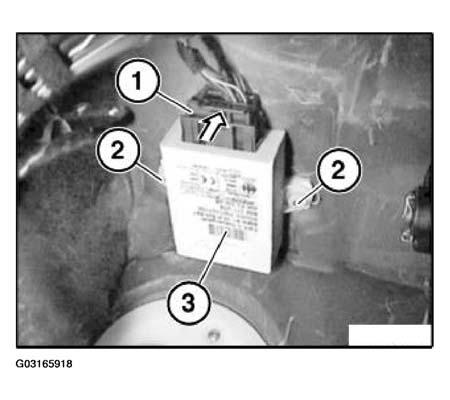

Fig 1: Removing Control Unit Of Electronic Immobilizer

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out programming/coding.
