61 31 133 Removing and installing/replacing AV connecting socket (from 08/2010)

Special tools required:

Necessary preliminary work:

Unclip console heater cover (1) from retaining clips (2) using special tool 00 9 323 and remove.

Fig 1: Removing Console Heater Cover Using Special Tool (00 9 323)

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on both sides.

Release screw (2).

Fig 2: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip center console cover (1) from brackets (2) and pull back slightly.

Fig 3: Identifying Center Console Cover And Brackets

Courtesy of BMW OF NORTH AMERICA, INC.

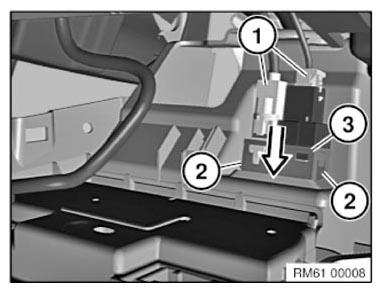

Unlock plug connections (1) on connecting socket (3) and disconnect.

Release latch mechanisms (2) and press connecting socket (3) out of cover in the direction of arrow.

Fig 4: Pressing Connecting Socket Out Of Cover

Courtesy of BMW OF NORTH AMERICA, INC.
