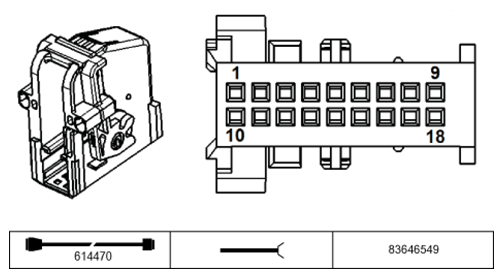

Steering Column Switch Cluster SX1880A Connector End View
Pin Assignments At Plug Connector X1880
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | E | Supply, terminal 30G | Fuse F15 up to 2008_11 |
| 1 | E | Supply, terminal 30G | Fuse F17 from 2008_12 |
| 2 | M | Ground | Ground point |
| 3 | E/A | Signal PT-CAN high | A4010a Junction box, electronics |
| 4 | E/A | Signal PT-CAN low | Junction box, electronics |
| 5 | E | Wake-up signal, terminal 15 | Connector, terminal 15 wake-up signal |
| 6 | E | Signal, left/right direction indicator switch | Footwell module |
| 7 | E | Signal, left/right direction indicator switch | Footwell module |
| 8 | A | Signal, high beam/headlight flasher switch | Footwell module |
| 9 | E | Signal, low beam switch | Footwell module |
| 10 | E | Signal, parking light switch | Footwell module |
| 11 | A | Activation Onboard computer function | Instrument cluster control module |
| 12 | E/A | Signal F-CAN high | Junction box |
| 13 | E | Signal Rocker switch, left | Rocker switch, left |
| 14 | E | Signal Rocker switch, left | Rocker switch, left |
| 15 | E | Signal, headlight vertical aim control switch | Footwell module |
| 16 | -- | Not occupied | |
| 17 | -- | Not occupied | |
| 18 | -- | Not occupied |
