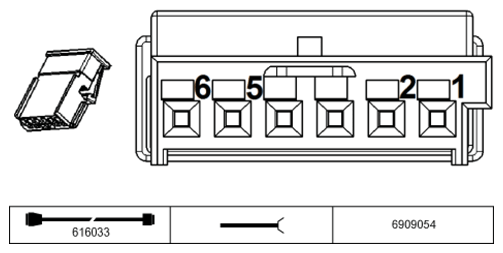

Roof Operating Unit SX14288A Connector End View
Pin Assignments At Plug Connector X14288
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | E | Signal, switch lighting blue | Footwell module |
| 2 | E | Signal, switch lighting orange | Footwell module |
| 3 | A | R55, R56 Signal, sunroof switch | Sunroof |
| 3 | A | R57, R58, R59 lights package, 3rd color Signal, switch lighting | Footwell module |
| 4 | A | R55, R56 Signal, sunroof switch | Sunroof |
| 4 | A | R57 Passenger airbag deactivation lamp | Multiple restraint system control module |
| 5 | A | R55, R56 Signal, sunroof switch | Sunroof |
| 5 | A | R57, R58, R59 lights package, 3rd color Connector for switch illumination, blue | Connectors X4763, X1366, X1203 |
| 6 | E | R55, R56 ambient lighting, 3rd color Signal, switch lighting | Footwell module |
| 6 | A | R57, R58, R59 lights package, 3rd color Connector for switch illumination, green | Connector for switch illumination, green |
