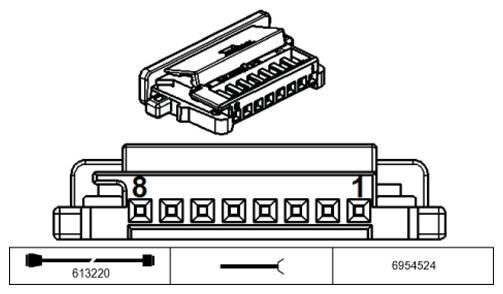

Roof Operating Unit SX14286B Connector End View
Pin Assignments At Plug Connector X14286
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | E | R55, R56 without lights package Signal, terminal R | Car access system |
| 1 | E | R55, R56 ambient lighting, 3rd color Connector for switch illumination, green | Connector Activation, green LED |
| 1 | E | R57, R58, R59 Signal, locator lighting | Footwell module |
| 2 | A | R55, R56 Signal Passenger airbag deactivation lamp | Multiple restraint system control module |
| 2 | M | R57, R58, R59 Ground | Ground connection X2184 |
| 3 | E | R55, R56 Signal, terminal 58G | Footwell module |
| 3 | E | R57, R58, R59 Signal, switch lighting | Footwell module |
| 4 | A | R55, R56 Signal, interior light switch | Footwell module |
| 4 | A | R57 Signal Close convertible top | Convertible top module (CTM) |
| 4 | E | R58, R59 Signal, retract rear spoiler | Junction box |
| 5 | E | light package Signal, terminal 30G | Fuse F14 |
| 5 | E | R58, R59 Signal, extend rear spoiler | Junction box |
| 5 | A | R57 "Open roof switch signal | Convertible top module |
| 5 | E | without lights package Signal, load cutout | Footwell module |
| 6 | M | R55, R56 Ground | Ground connection X2184 |
| 6 | E | R57, R58, R59 Voltage supply Fuse F16 | Connector X10189 |
| 7 | E | R57 Activation, green LED | Convertible top module |
| 7 | E | R58, R59 Activation, green LED | Junction box |
| 8 | E | R57, R58, R59 Signal, terminal 58G | Connector, instrument and locator lighting X1019 |
