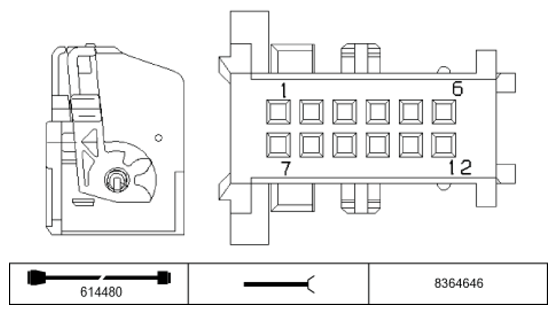

Central Information Display with CCC/MASK X9997 Connector End View
Pin Assignments At Plug Connector X9997
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | E | Supply, central information display | Fuse F21 |
| 2 | -- | Not occupied | |
| 3 | M | Ground | Ground point |
| 4 | -- | Not occupied | |
| 5 | E/A | CAN bus high | Junction box, electronics |
| 6 | E/A | CAN bus low | Junction box, electronics |
