11 8 540 Engine support plate

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.

In conjunction with: 00 1 450" 00 2 300

NOTE: For accommodating engine on assembly stand.

Engine: N51, N52, N52K, N53, N54

SI number: 1 20 06 (299)

Order number: 11 8 540

Engine support plate

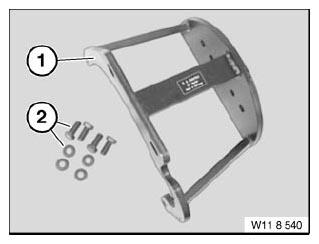

Fig 1: Identifying Special Tool - 11 8 540 Engine Support Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 11 8 541 Engine take-up

2 = 11 8 542 Set of screws (4 x)
