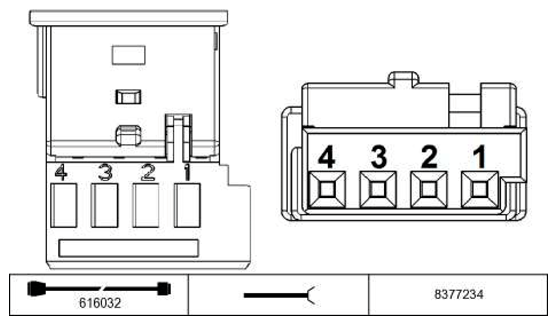

Mini Joystick SX10387A Connector End View
Courtesy of BMW OF NORTH AMERICA, INC. Pin Assignments At Plug Connector X10387
| Pin |
Type |
Description /Signal type |
Connection /Measuring notes |
| 1 |
E |
Positive supply |
Fuse F23 |
| 2 |
M |
Ground |
Ground point |
| 3 |
E/A |
K-CAN system bus |
CAN bus connector |
| 4 |
E/A |
K-CAN system bus |
CAN bus connector |
