Minimum Set: Mechanical Tools

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 BMW 545i, 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 545i, and 2004 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Note: For locking flywheel with transmission removed

Engine: M47TU, M54, M57T2, M57TU, N40, N42, N45, N46, N52, N62, N73, S85, W17

Storage location: A45, B43, C44

SI number: 1 01 01 (662)

Order number: 11 9 260

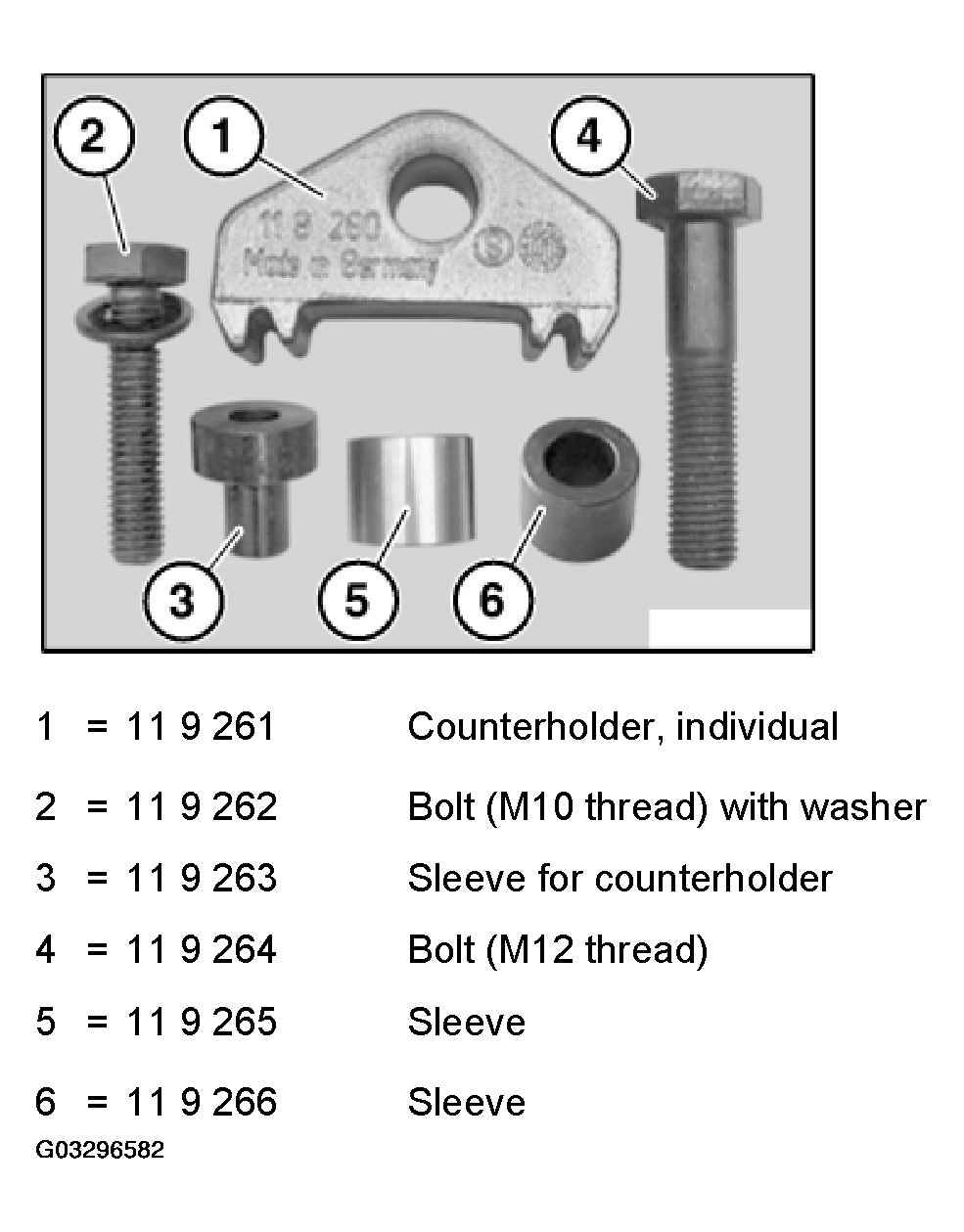

Fig 1: Identifying Counter Support With Screw Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Counter support with screw connection

Consisting of:

1 = 11 9 261 Counterholder, individual

2 = 11 9 262 Bolt (M10 thread) with washer

Note: For bolting down counterholder

3 = 11 9 263 Sleeve for counterholder

Note: For counterholder for locking flywheel with transmission removed engine: N62, N73

4 = 11 9 264 Bolt (M12 thread)

Note: For counterholder for locking flywheel with transmission removed

5 = 11 9 265 Sleeve

6 = 11 9 266 Sleeve

Note: For counterholder for locking flywheel with transmission removed Engine: M57TU2
