52 25 ... Replacing Padding For Rear Seat Backrest

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: This task is identical to replacing backrest cover for rear seat. Refer to 52 25 410 REPLACING BACKREST COVER FOR LEFT OR RIGHT REAR SEAT .

Seat With Air Conditioning:

Remove A/C fan from padding.

Installation:

Make sure fans have correct cable routing (1).

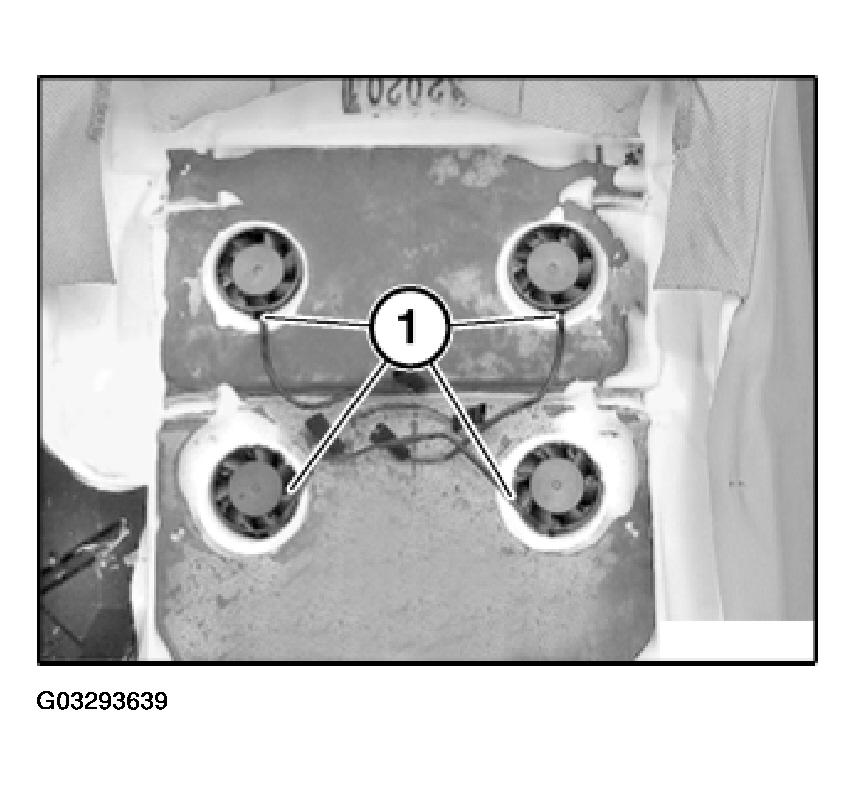

Fig 1: Fan Cable Routing
G03293639Courtesy of BMW OF NORTH AMERICA, INC.
