133010 Terminal

Minimum set: Mechanical tools AM

NOTE: (Hose clip) For removing a hose during repair work

Storage Location:

A3

B3

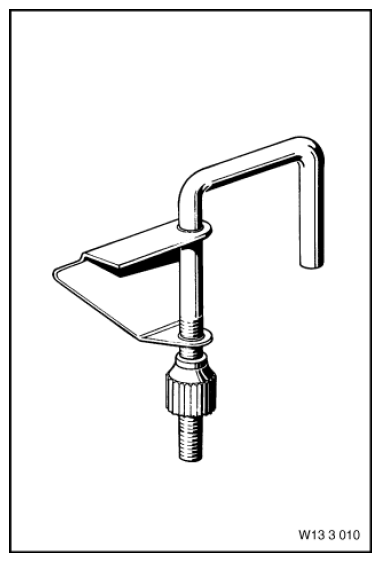

Fig 1: Identifying Terminal (133010)

G10136994

Courtesy of BMW OF NORTH AMERICA, INC.
