62 11 210 Replacing instrument cluster electronics: Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.
Remove instrument carrier, refer to 62 21 000 REMOVING AND INSTALLING COMPLETE INSTRUMENT CARRIER
Unfasten locking unit, fold over retaining bracket and remove connector.

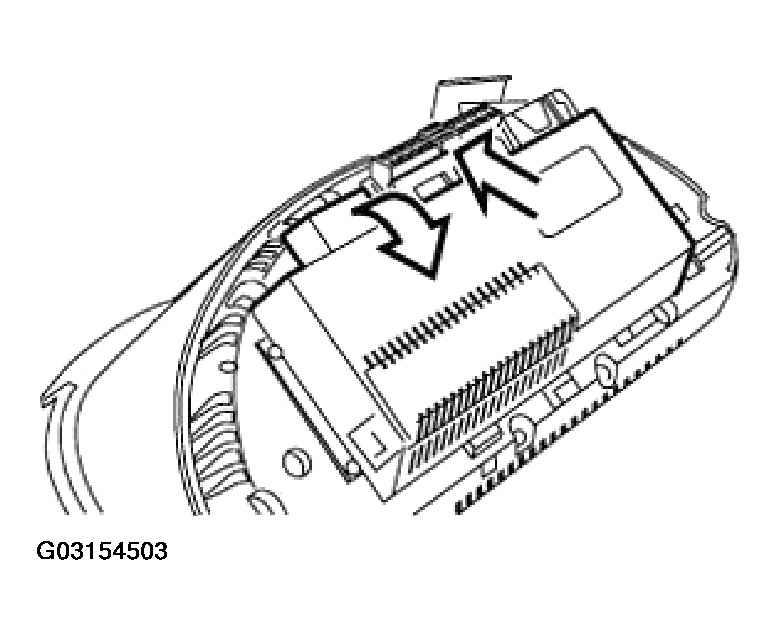

Unfasten locking unit, slide electronics module sideways and lift out.
