Checking For Leaks

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Check all visible connections, hoses, lines and steering gear for traces of fluid. See Fig 1.

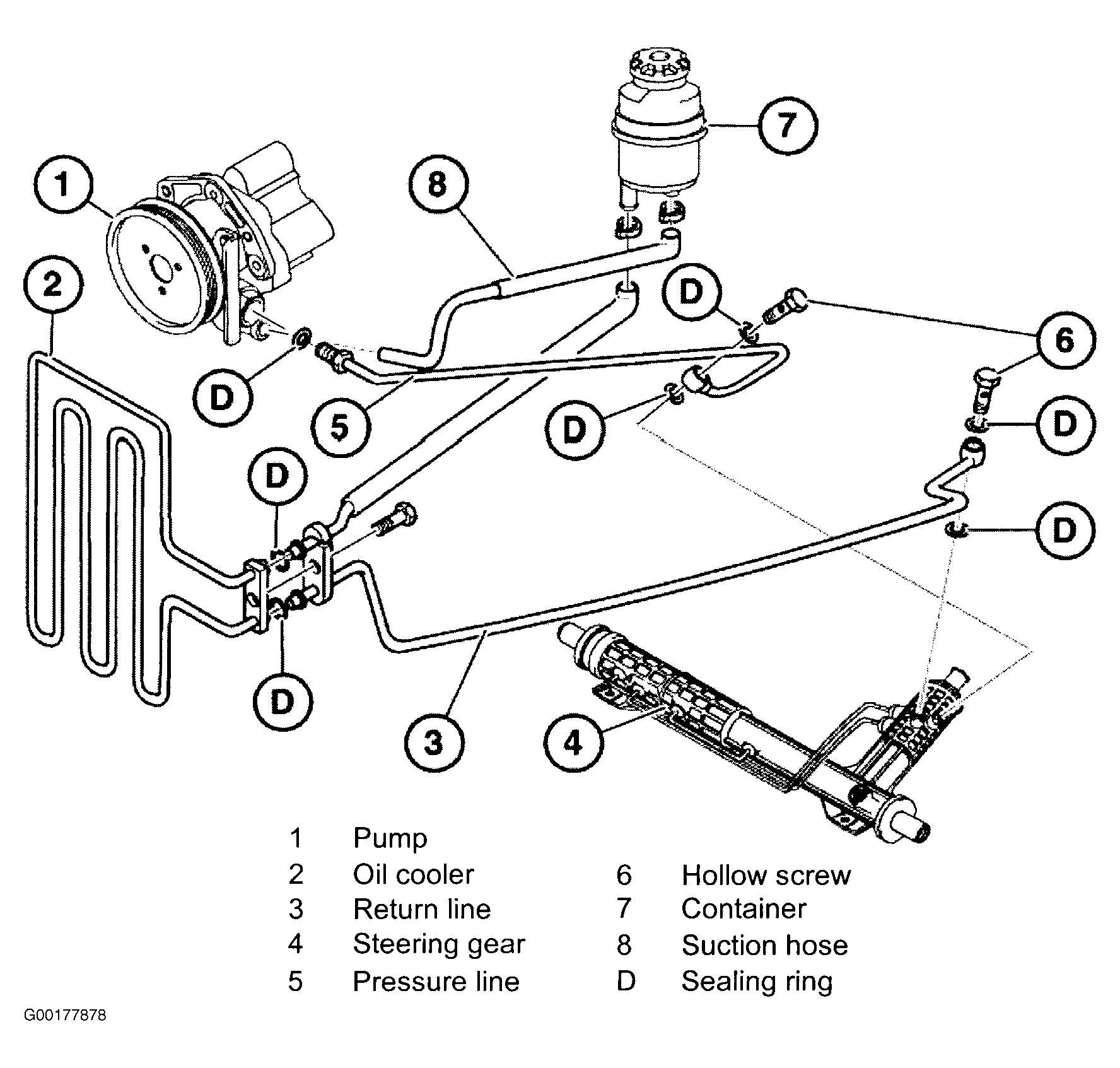

Fig 1: Power Steering Components & Lines
G00177878Courtesy of BMW OF NORTH AMERICA, INC.
