Steering Column: Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 BMW 745i, 2004 BMW 745Li, 2003 BMW 745i, 2003 BMW 745Li, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative battery cable.
  2. Move steering to straight ahead position.
  3. Remove trim panel for pedal assembly. See TRIM FOR PEDAL ASSEMBLY  .
  4. Remove air duct in footwell.
  5. Remove lower trim from instrument panel. See INSTRUMENT PANEL LOWER TRIM  .
  6. Remove steering wheel. See STEERING WHEEL  .
  7. Remove upper section of steering column trim. See STEERING COLUMN COVER UPPER SECTION  .
  8. Remove screws (1). Pull out switch center for steering column stalk (2) in direction of arrow. Disconnect plug connections behind and remove switch center for steering column stalk. See Fig 1 .
  9. Disconnect plug connections on steering column.
  10. Detach wiring harness from steering column.
  11. Mark position of steering column in relation to instrument panel. See Fig 2 .
  12. Release clamping screw (1). Detach upper section of steering spindle from steering column and press downwards. See Fig 3 .
  13. Remove left and right bolts holding steering column to dashboard. See Fig 4 .
  14. Remove left and right bolts. Remove steering column. See Fig 5 .
  15. Remove steering column control unit from steering column. See STEERING COLUMN CONTROL UNIT (CIM)  .

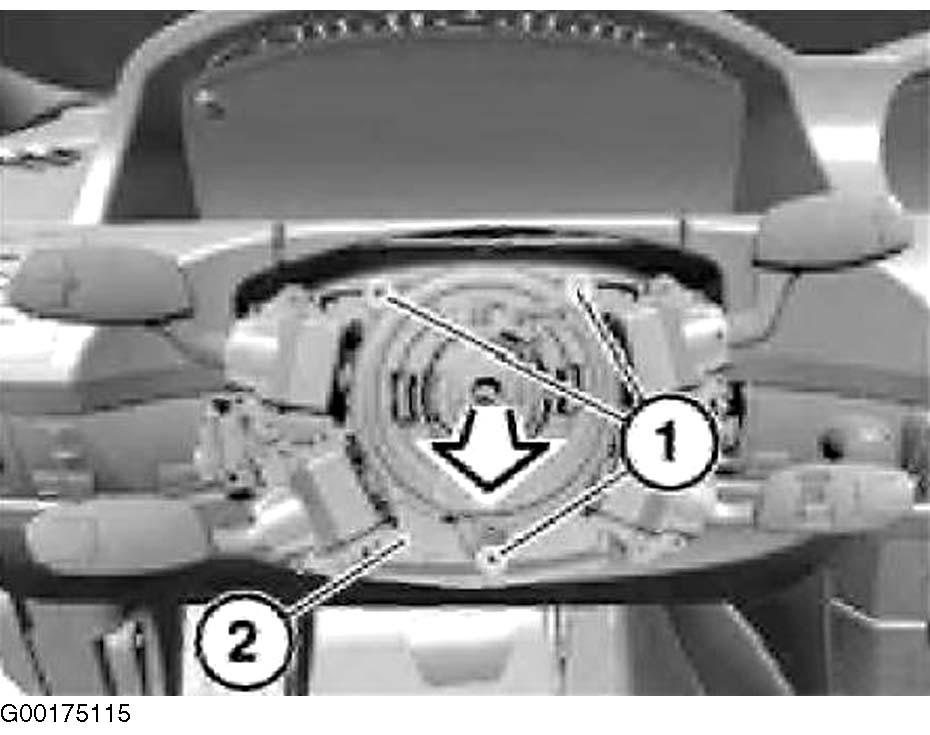

Fig 1: Removing Steering Column Switch Center
G00175115Courtesy of BMW OF NORTH AMERICA, INC.

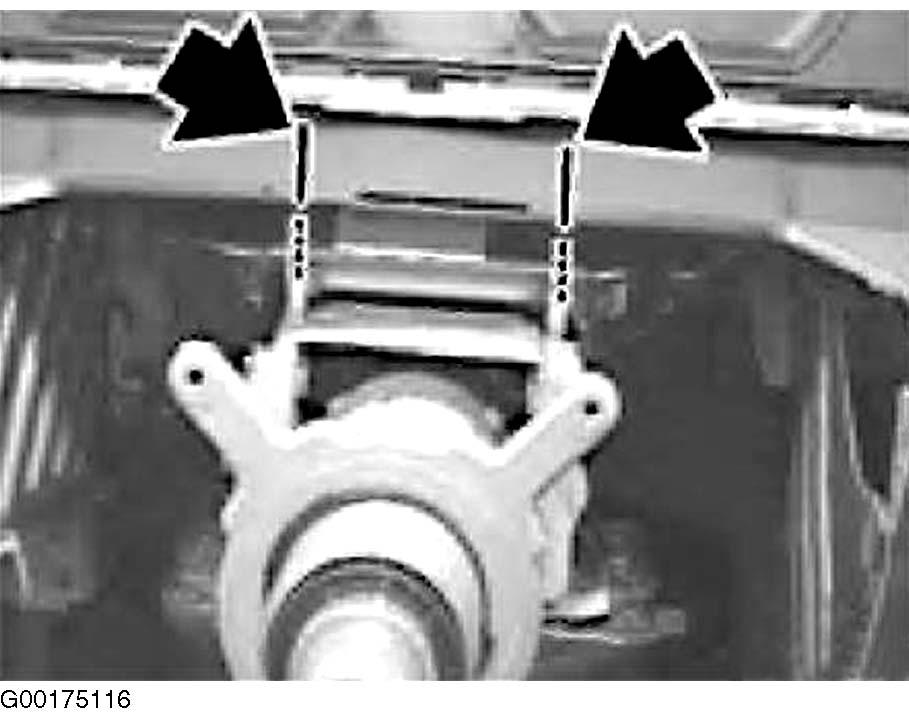

Fig 2: Marking Position Of Steering Column
G00175116Courtesy of BMW OF NORTH AMERICA, INC.
Fig 3: Removing Steering Spindle
G00175102Courtesy of BMW OF NORTH AMERICA, INC.

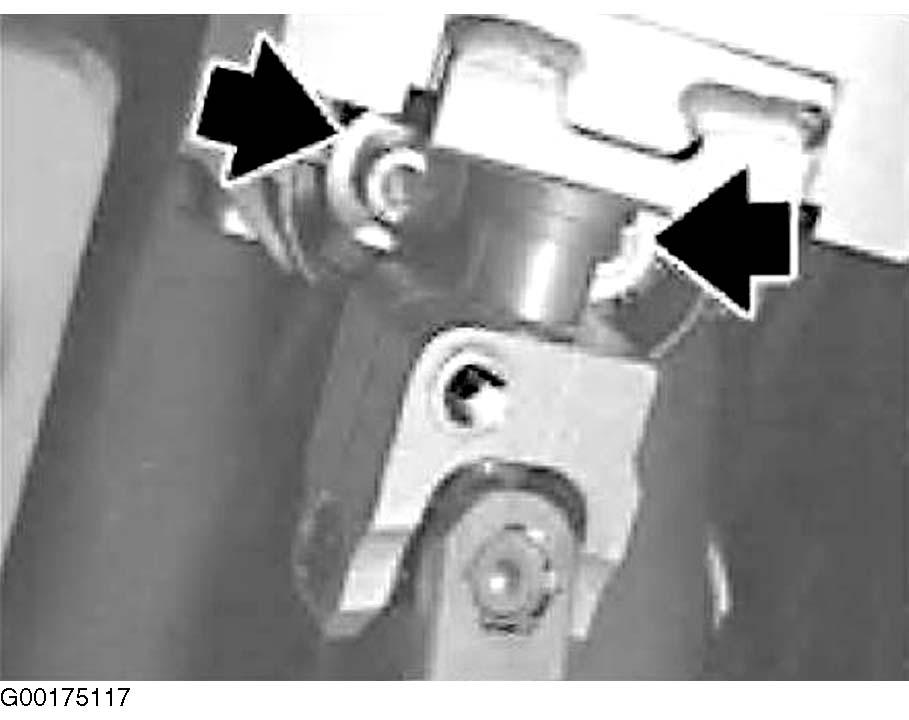

Fig 4: Locating Steering Column To Dashboard Bolts
G00175117Courtesy of BMW OF NORTH AMERICA, INC.

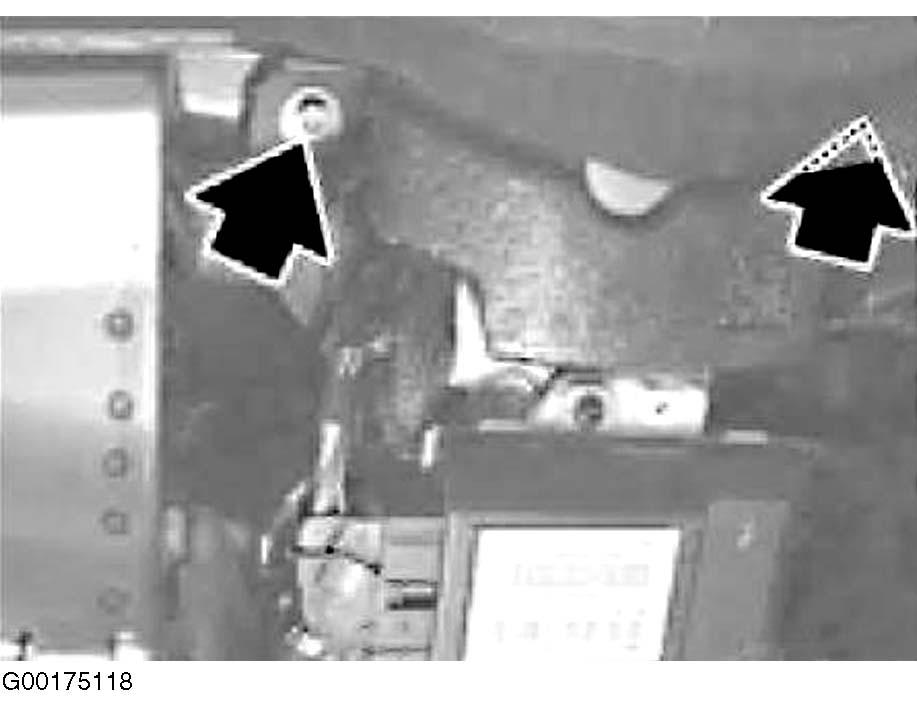

Fig 5: Removing Steering Column
G00175118Courtesy of BMW OF NORTH AMERICA, INC.
