62 11 070 Replace encoding connector

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Compact.

Removing instrument cluster.

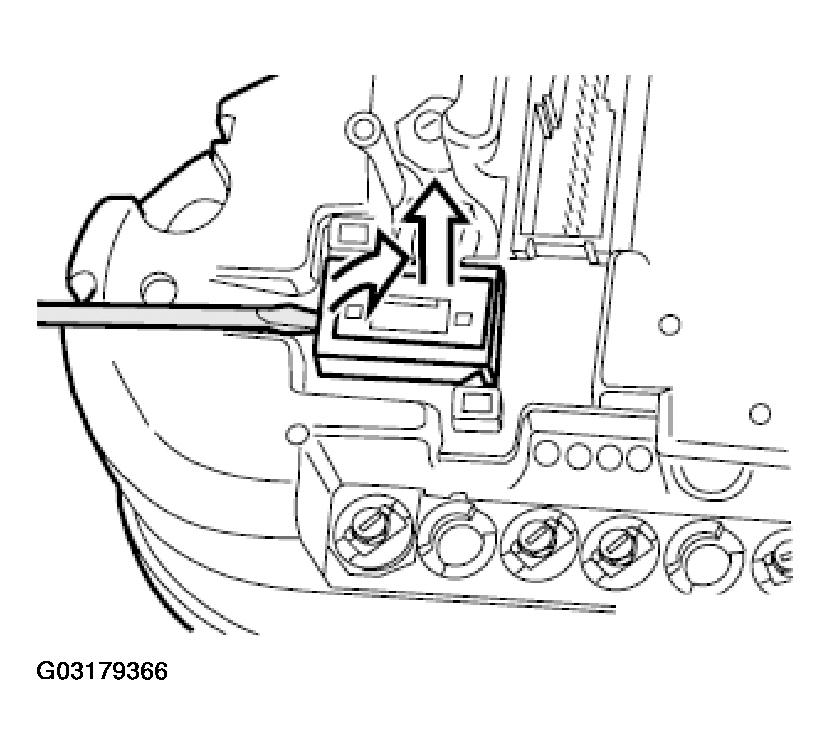

Break open retaining frame with screwdriver and remove encoding connector.

Fig 1: Removing Instrument Cluster

Courtesy of BMW OF NORTH AMERICA, INC.

Insert encoding connector and clip in new retaining frame.

CAUTION: The new encoding connector must be checked against the instrument cluster, refer to 62 10 000 CHECK FUNCTION OF INSTRUMENT CLUSTER , Tests 15 and 09.

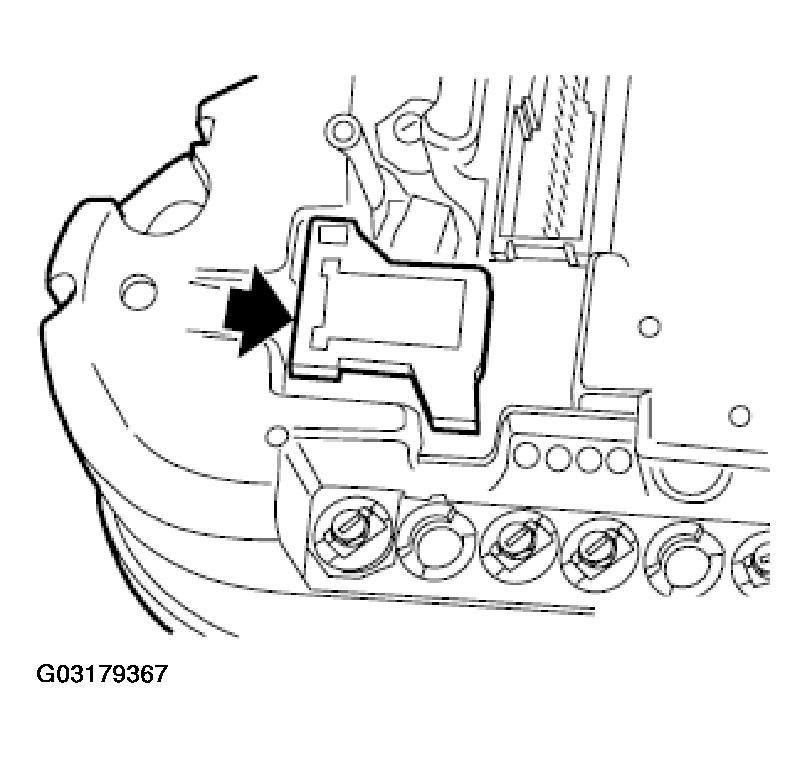

Fig 2: Inserting Encoding Connector And Clip In New Retaining Frame

Courtesy of BMW OF NORTH AMERICA, INC.
