11 9 470 Support
WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Minimum set: Mechanical tools
NOTE:
For installing/removing bearing bracket (Camcarrier)
Engine: N62, N62TU, N73
SI number: 1 14 01(766)
Order number: 11 9 470
Support

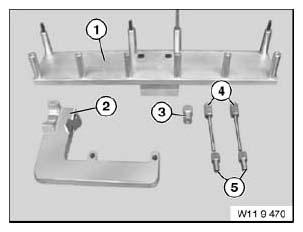

Consisting of:
1 = 11 9 471 Base plate
2 = 11 9 472 Shaped section
3 = 11 9 473 Knurled nut
4 = 11 9 474 Retaining screws (2 x)
5 = 11 9 475 Guide bushes (2 x)
6 = 11 9 476 Shaped section
NOTE:
Note: For securing inlet camshaft during installation in bearing bridge - Engine: N73
