31.... Layout of Spring Strut Shock Absorber

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

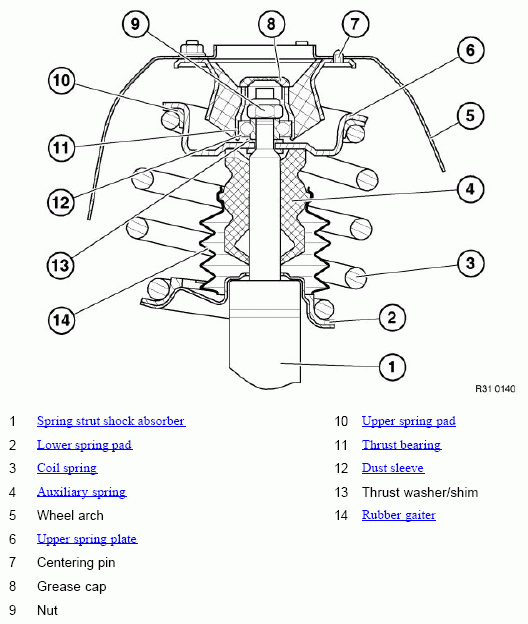

Fig 1: Identifying Layout Of Spring Strut Shock Absorber
G04774324Courtesy of BMW OF NORTH AMERICA, INC.
