31 12 080 Removing And Installing/Replacing Both Tension Struts
WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Except M3: Remove both front wheels . See 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL .
- Remove front underbody protection . See 51 47 490 REMOVING AND INSTALLING/REPLACING FRONT UNDERBODY PROTECTION .

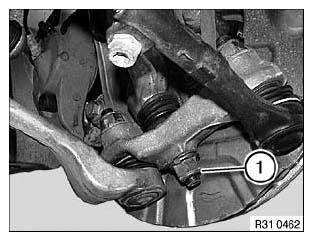

Release nut (1); if necessary, grip at Torx socket (T40).
Installation:
Keep tension strut to swivel bearing connection clean and free from oil and grease.
Replace self-locking nut.
Tightening torque. Refer to 31 12 2AZ in 31 12 CONTROL ARMS AND STRUTS .

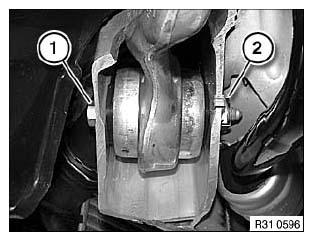

Release bolt (1) and remove tension strut.
Raise locking nut (2) in area of bore and detach from front axle carrier.
Installation:
Replace locking nut.
Tighten bolt connection in normal position . See 32 00... MOVING VEHICLE INTO NORMAL POSITION .
Tightening torque. Refer to 31 12 1AZ in 31 12 CONTROL ARMS AND STRUTS .
