DSC3 Pre-Boost Pump (Except M3): Installation

WARNING: This page does not describe the selected car, but rather 34 other vehicles, including the 2004 BMW M3, 2004 BMW 330xi, 2004 BMW 330i, 2004 BMW 330Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse removal procedure. Check rubber mount (1) and replace if necessary. See Fig 1.
Tighten screws and lines to specification. See TORQUE SPECIFICATIONS .
When installing vacuum line and B+ line, ensure rubber grommets are correctly seated.
After completing work, bleed brake system. See BASIC BLEEDING PROCEDURES .

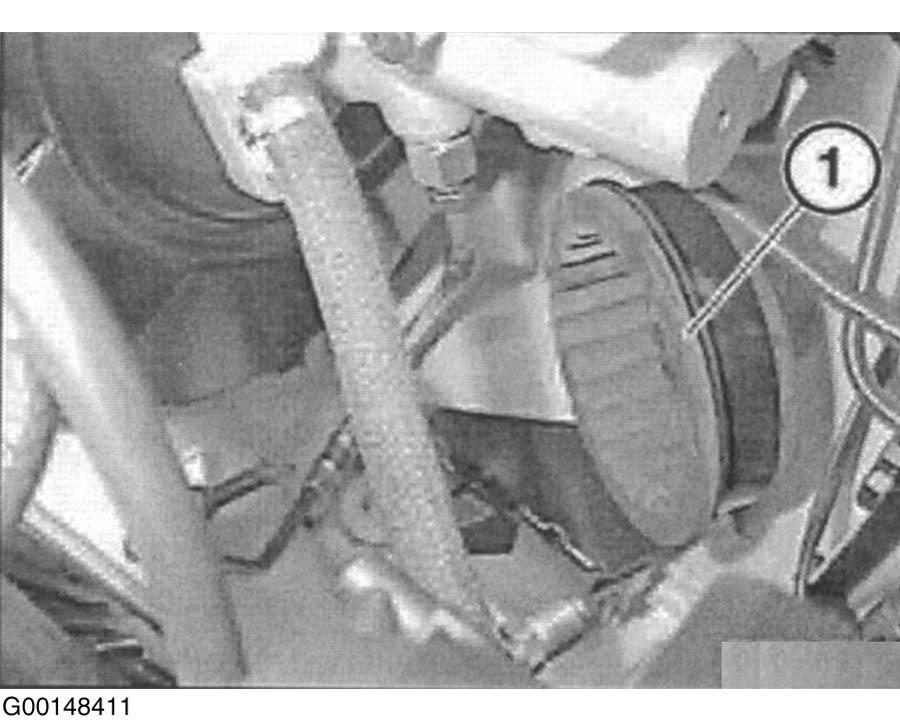

Fig 1: Checking Rubber Mount

Courtesy of BMW OF NORTH AMERICA, INC.
