61 35 795 Removing and installing (replacing) control unit for adaptive directional headlights
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove right glovebox, refer to 51 16 360 REMOVING AND INSTALLING RIGHT GLOVE BOX

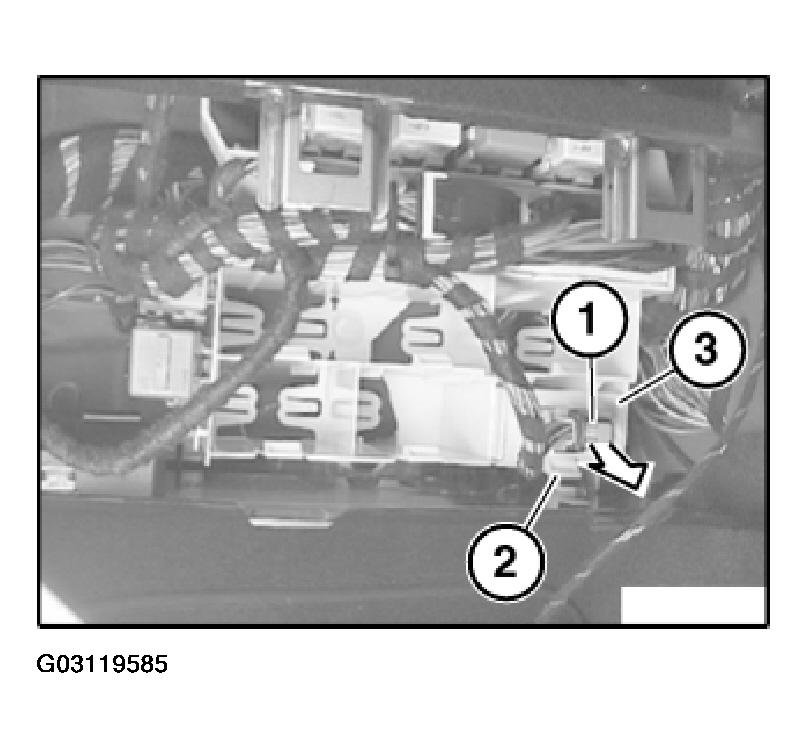

Unfasten plug connection (1) and disconnect.
Press catch (2) and remove control unit for adaptive directional headlights (3).
Replacement:
Carry out coding/programming.
Observe following IDC specifications:
- Programming
- Coding
- If necessary, car & key memory
- CD "CIP"
