66 31 006 Removing and installing (replacing) ACC sensor: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove the ornamental GRILLE FOR THE BUMPER PANEL (CENTRE)

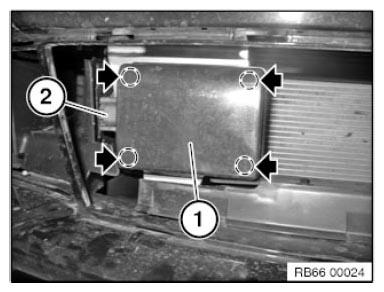

Fig 1: Identifying ACC Sensor And Plug Connection
Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws in marked area on the rear side of the ACC sensor (1).

Tightening torque: see 1AZ in 66 31 ACC SENSOR .

Unfasten plug connection (2) and disconnect.

Remove ACC sensor (1).
