61 31 033 Removing and installing light switch unit

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Unclip left wooden finisher, refer to 51 16 221 REPLACING A CLIPPED-IN TRIM (DECORATIVE STRIP ON PANEL FOR INSTRUMENT PANEL, FRONT OR REAR DOOR) .

Remove left glovebox, refer to 51 16 350 REMOVING AND INSTALLING LEFT GLOVE BOX .

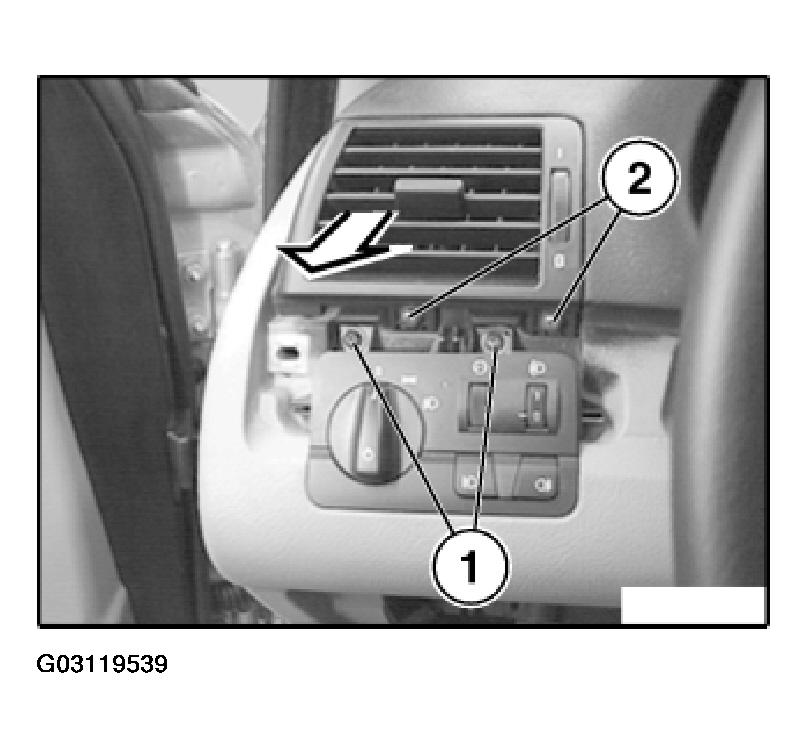

Release screws (1).

Fig 1: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

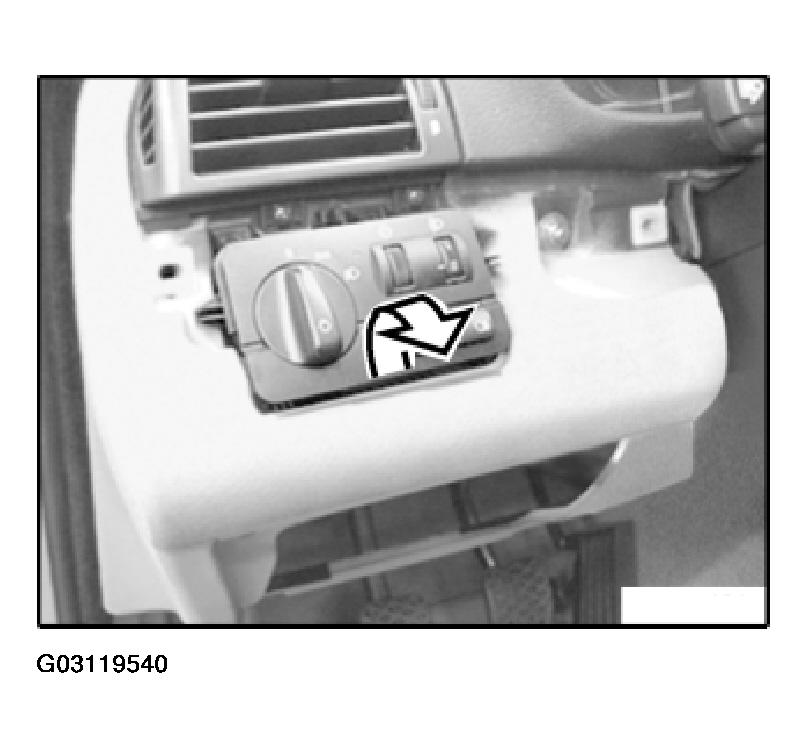

Press switch unit up a little through glovebox aperture and then slide back.

Fig 2: Pressing Switch Unit Up Through Glovebox Aperture

Courtesy of BMW OF NORTH AMERICA, INC.

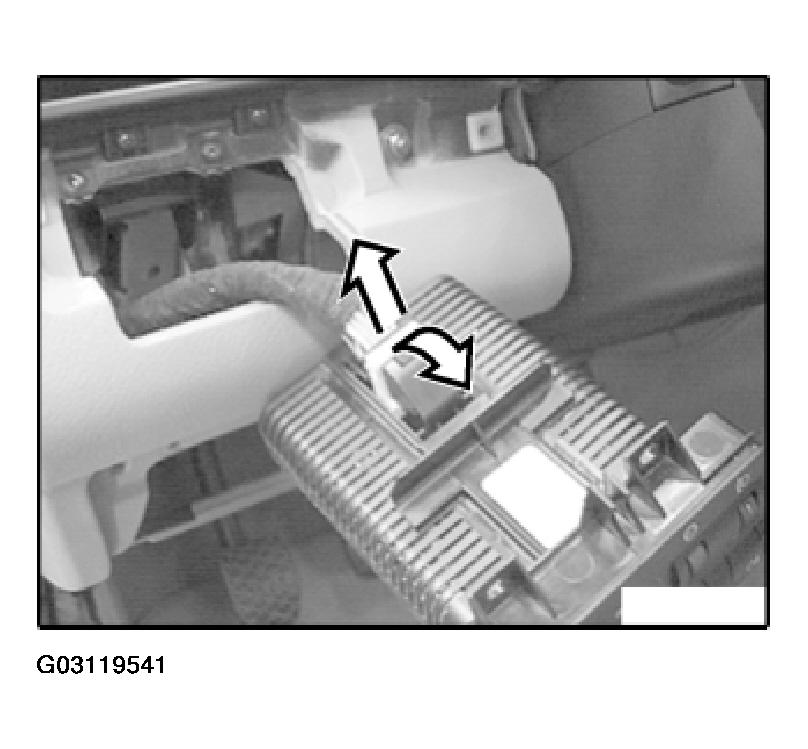

Unlock plug and remove.

Fig 3: Removing Plug

Courtesy of BMW OF NORTH AMERICA, INC.
