00 00... Changing Differential Oil

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Change oil with rear axle differential at normal operating temperature.

Final drive oil, refer to OPERATING FLUIDS - REAR AXLE .

For filling quantity, refer to DRIVE AXLE SHAFTS (REAR) .

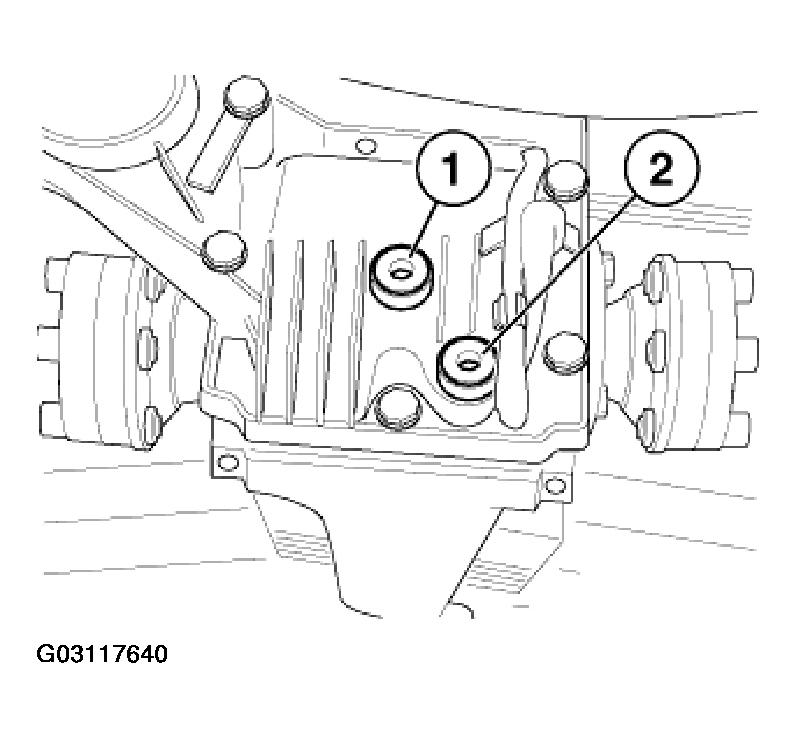

Fig 1: Locating Differential Drain Plug And Filler Screw Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew drain plug (2), clean and reinstall.

Unscrew the filler screw plug (1).

Pour in differential oil until overflowing. Install filler screw plug (1).

Installation:

Tightening Torque, refer to TORQUE SPECIFICATIONS .
